Product Details:
Payment & Shipping Terms:
|
| Name: | 3 Layer Face Mask Machine | Power Input: | 220V / 50Hz |
|---|---|---|---|
| Warranty: | 12 Months | Feature: | Durable |
| Product Type: | Mask, Mouth Cover | Usage: | Proshield N95 Mack |
| High Light: | face mask maker machine,face mask production line |
||

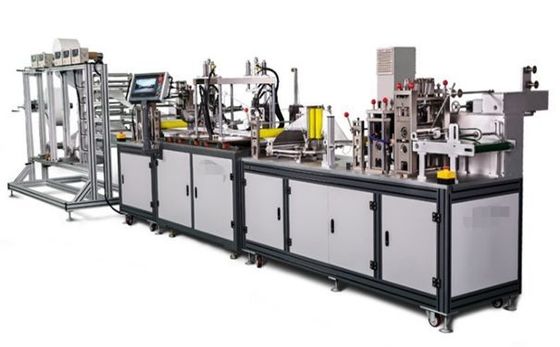

Respirator N95 3 Layer Face Mask Machine / Medical Face Mask Production Line
3 Layer Face Mask Machine Advantage description
1. High production efficiency;
2. Full computer PLC control, high degree of servo / step drive / automation, high stability and low failure rate;
3. Photoelectric detection of raw materials to avoid mistakes and reduce waste;
4. Photoelectric detection and automatic counting in process of production (including total count and batch count);
3 Layer Face Mask Machine Basic Info. :
Model NO:MM-L1
Speed :100~120 PCS/Min
Machine Type:Disposable Nonwoven Machinery
Power Input:220V / 50Hz
Product Size :175*95mm
Purpose: Making Disposable Face Mask
Driven Type : Electric
Air Pressure : 0.6MPa
Transport Package : Sea Worthy Wooden Cases
HS Code : 847780000
3 Layer Face Mask Machine parameters :
| Control system power | 1 Phase 220V / 50HZ |
| Air Pressure | 0.6Mpa |
| Power supply | 3Phase 380V 50HZ |
| servo motor | Domestic quality |
| Control System | PLC |
| sensor | Omron, Seak |
| Pneumatic Components | SMC Yadek |
| Operation screen | 10 inch capacitive screen |
| Bearing | NSK |
| Lead screw | Hiwin |
| Security | Safety light grid |
| Equipment structure | 2 ply |
| equipment power | 8.5KW |
| equipment weight | about2.6T |
| Driven | Ordinary motor + servo |
| Number of applicable layers | 3-layer |
| Applicable materials | PP, non-woven fabric, synthetic fiber |
| Processing methods | Ultrasonic welding |
| Finished product specifications | 175*95mm |
| Technical characteristics | |
| 1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed. 2. The production line adopts the structure of 2ply, with high production efficiency 3. Nose clips and ear loop are automatically cut and welded by ultrasound 4. Automatic counting and palletizing after welding earbands |
|
Price Term
1. Above price is quoted based on FOB Shenzhen China
2. Payment term: 30% down payment, the balance paid before delivery
3. Delivery time: Within 25 workdays after received 50% down payment
4. COUNTRY OF ORIGIN: China
5. MARKING: Notice by buyer
6. PACKING: Wooden Pallet
3 Layer Face Mask Machine Details
