Product Details:
Payment & Shipping Terms:
|
| Advantage: | Silent | Machine Type: | Automatic Non Woven Face Mask Making Machine |
|---|---|---|---|
| Product Size: | 175*95mm | Warranty: | 12 Months |
| Application: | Mouth Cover Production | Usage: | Hospital, Public |
| High Light: | face mask production line,face mask manufacturing machine |
||
Silent Automatic Non Woven Face Mask Making Machine One To Three Type
Automatic Non Woven Face Mask Making Machine Introduction
This machine is mainly used for automatic forming of flat masks. After the entire roll of fabric is unrolled, it is driven by rollers, and the fabric is automatically folded and wrapped. Nose bridge rolls unrolled by traction. Cut and import into the hemmed fabric, both sides are welded to seal by ultrasonic welding, and then through the ultrasonic side seal. It is cut and shaped by a cutter ; transported to the two mask ear band welding stations through an assembly line. The final mask is formed by ultrasonic welding. After the mask is made, it is transported to flat belt line and collected.
Automatic Non Woven Face Mask Making Machine Features:
1. Counting Automatically can control the speed and efficiency of the machine.
2. Frequency conversion control , the machine can adjust the speed according to the working condition
3. Automatic Machine, easy operate by the workers, only need put material and collect.
4. Easy to maintain the machine.
Automatic Non Woven Face Mask Making Machine parameters :
| Control system power | 1 Phase 220V / 50HZ |
| Air Pressure | 0.6Mpa |
| Power supply | 3Phase 380V 50HZ |
| servo motor | Domestic quality |
| Control System | PLC |
| sensor | Omron, Seak |
| Pneumatic Components | SMC Yadek |
| Operation screen | 10 inch capacitive screen |
| Bearing | NSK |
| Lead screw | Hiwin |
| Security | Safety light grid |
| Equipment structure | 2 ply |
| equipment power | 8.5KW |
| equipment weight | about2.6T |
| Driven | Ordinary motor + servo |
| Number of applicable layers | 3-layer |
| Applicable materials | PP, non-woven fabric, synthetic fiber |
| Processing methods | Ultrasonic welding |
| Finished product specifications | 175*95mm |
| Technical characteristics | |
|
1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed.
|
|
Price Term
1. Above price is quoted based on FOB Shenzhen China
2. Payment term: 30% down payment, the balance paid before delivery
3. Delivery time: Within 25 workdays after received 50% down payment
4. COUNTRY OF ORIGIN: China
5. MARKING: Notice by buyer
6. PACKING: Wooden Pallet

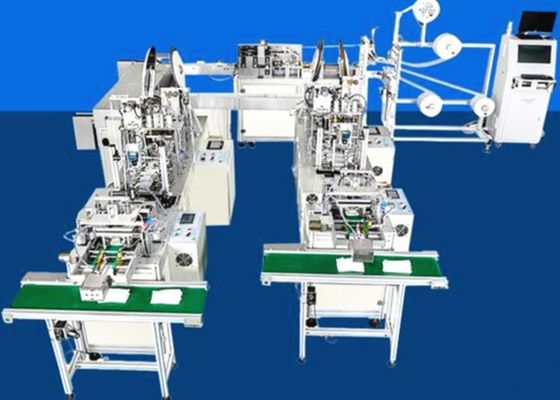

Automatic Non Woven Face Mask Making Machine Details
