Maystar Electronics and Electrical Industry Co.,Ltd
Big Idea Display You Future
Product Details:
Payment & Shipping Terms:
|
Product Name: | Digital Signage LCD Display | Application: | Post Offices, Hospital |
---|---|---|---|
Resolution: | 1920*1080/3840*2160 For Option | Installation: | Floor Stand/Wall Mounted/Open Frame Are Optional |
Custom Service: | Custom Accepted | Touch Type: | Infrared Ray Touch & Capacitive Touch For Option |
High Light: | floor standing lcd advertising display,lcd advertising display screen |

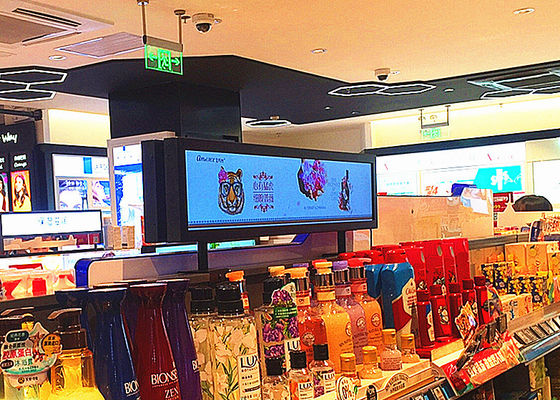

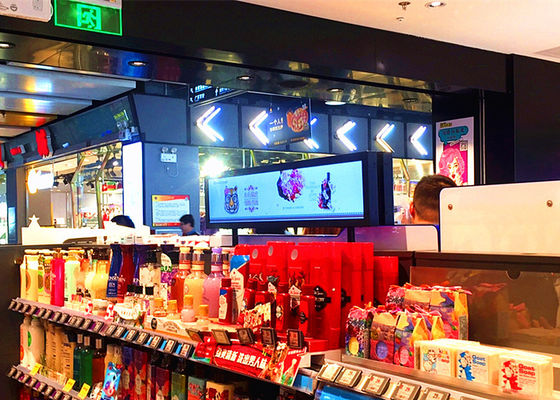

Ultra Wide Bar Stretched LCD Display / LCD Bar Display For Supermarket Shelf
Description :
1, Adopt High-Strength Aluminium Alloy, Hardened Coat Painting Metal, 6mm thickness Anti-Vanal High Tempered Glass,antistatic,preventing magnetic strong interference.
2, With 6mm thickness tempered glass as protection layer against the surface of LCD screen.
3, With USB update feature; support functions between the card and card copying files (such as CF card to SD card,or SD to CF card etc.); support U-copy, conveniently and quickly updating target content, more details please visit user manual.
4, Playing advertising program automatically and circular; support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX (5.0/6.0).
5, Automatically turn up or down the volume of ad media player after finished the period of time setup to machine according to your requirements.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
6, Support 1080P Full HD Video and picture.
7, with scrolling marquee and angle icon display for any interval and segment quantity.
8, Physical resolution up to 1920*1080,compatible below resolution.automatically adjust to the best place.
9, The scientific Golden Angle Design is adopted for the body, super-thin and light machine body.
10. Built in with camera, printer, scanner, keyboard, card payment.
Maystar Digital Advertising Screens are optional with 3 types of Configuration: | ||||
Configuration Type | Standalone U-disk auto-play (based on Android OS) | Android OS with Cable Network & WIFI network version( Content Management Software is included) |
Windows OS WIFI Cable Network |
|
After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional | ||
Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | ||
Packaging Recyclability | All Packing material are recyclable | |||
Main Specification | Display Size | 15'', 17",19",22",26", 32'',43'',47",49",50",55",65",75",82" 86" | ||
Packing Material | Veneer Wooden Box( Aluminium Box is optional) | |||
Power Comsuption | 20W~80W | |||
Power Supply |
Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world |
|||
Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | |||
Operating temperature | -20 ~85ºC | |||
Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
||
Operating System | Android OS |
Android OS 5.1/6.0/7.0 with Google Playstore |
Windows 8.1/10 | |
CPU | Dual-core |
Android version: Quad-core /Octa-core |
Windows version: i3/i5/i7/J1900 | |
GPU | Android version: GPU: Mali-T764 | Android version: GPU: Mali-T764 GPU,supporting 4K resolution |
Windows version: Integrated in CPU HD4600 |
|
RAM | 1G/2G for option |
Android version: LPDDR3 2G/4G/8G/16G for option |
Windows version: DDR3/ DDR4 2G/4G/8G/16G for option |
|
Storage | 4G/8G for option |
Android version: EMMC 8G/16G/32G/64G for option |
Windows version:SSD 32G/ 64G/128G/562G/1TB for option |
|
Cable Network Connectivity | N/A | YES | YES | |
WIFI connectivity | N/A | YES | YES | |
3G/4G/5G Network Connectivity | N/A | Optional | Optional | |
Bluetooth | N/A | Optional | Optional | |
In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input |
Android Version: 1xUSB 3.0 , copy speed reach to 16M/S; 1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot |
Windowsversion:2xUSB3.0,2x USB2.0,1xHDMI, 1xRJ45 Cable Network Port, 1xVGA, Audio output, Microphone input |
|
Unique Function | Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly |
We offer free-of-charge CMS ( Content Management Software), with which you will be able to access to all of computer via Internet(Cable Network/Wirelss/3G network/4G network/5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/monthly/yearly schedule.... |
It's powerful as computers like we daily use, can be with touch function or non-touch. | |
Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | 2×8W (8Ω) | |
Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2),MPEG1(VCD:DAT/MPG1), WMV, MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,...etc. support all of the format of video |
|||
Audio Format | MP3..etc. all of the format of audio | |||
Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |||
Operating System Language |
English/Русский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language |
|||
Touch Screen Specification (Touch Screen is optional) | Touch Point | N/A |
SoftTouch sensitive Real 10 points Mult-touch |
|
Touch Type | N/A | Latest Version Infrared Ray SoftTouch | ||
Touch Sensibility: | N/A | <2mm | ||
Response Time | N/A | <2ms | ||
Scanning Rate | N/A | 50 scans/s | ||
Available object size for touch | N/A | <2mm | ||
Transparency of Tempered protecting glass | N/A | >95% | ||
Durability of Touch | N/A | No limited | ||
Surface hardness of Touch screen | N/A |
Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball |
||
Display Specification | Display Brand |
LG / SAMSUNG Original A+Grade display A + grade, without any light spot or black spot and Full Viewing Angle |
||
Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | |||
Display color | 16.7 Millinium | |||
Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |||
Brightness (nits) | 600cd/m2 | |||
Contrast | 1500:1 | |||
Visual angle | Full View 178/178 degreee | |||
Response time | 3~5ms | |||
Life(hrs) | >70,000(hrs) | |||
Quantity of Accessories | 1.User Manual | 1 | 1 | 1 |
2.Warranty Card | 1 | 1 | 1 | |
3.Power Cord | 1 | 1 | 1 | |
4.Remote Controller | 1 | 1 | N/A | |
5.Security Door Key | 2 | 2 | 2 | |
6.WIFI antenna | N/A | 2 | 2 |
