Servo Drive Mask Making Equipment / Automation Face Mask Maker Machine

China Servo Drive Mask Making Equipment / Automation Face Mask Maker Machine supplier

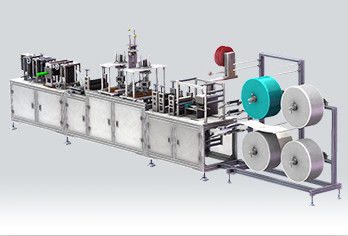

Large Image :  Servo Drive Mask Making Equipment / Automation Face Mask Maker Machine

Product Details:

Place of Origin: China
Certification: CE
Model Number: MM-L1

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Packing
Delivery Time: 30 - 45 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Contact Now
Detailed Product Description
Name: Mask Making Equipment Power Input: 220V / 50Hz
Product Size: 175*95mm Warranty: 12 Months
Product Type: Mask, Mouth Cover Other Name: Face Mask Maker Machine
High Light:

face mask maker machine


face mask production line

Servo Drive Mask Making Equipment / Automation Face Mask Maker Machine

Mask Making Equipment Description :

The Mask Making Equipment is used to fully automated make flat masks with with size 175*95mm. The main production process flow is coil material feeding, nose bridge tendon feeding, folding and pressing, mask cutting and forming, ear band feeding and welding, and finished product unloading. Automatically completes production from raw materials to finished masks. The produced masks are comfortable to wear, no pressure, good filtering effect of the masks, fit the human face, and can be used in medical, electronics, mining, construction and other industries.

The outer ear mask machine can only produce disposable flat masks with size 175*95mm, and cannot produce three-dimensional or N95 masks. Whether the masks produced by this machine are medically independent of the machine, as long as the masks are sterilized, the masks produced by this machine can be used to For surgical masks. Common medical masks: mainly composed of three layers of non-woven fabric. The inner layer is a common non-woven fabric; the outer layer is a non-woven fabric with a waterproof treatment, which is mainly used to isolate the liquid sprayed by the patient; the middle filter layer is an polypropylene meltblown non-woven fabric treated with electret; After the final production, it should be sterilized by ethylene oxide and left for 7 days for volatile toxicity.


Mask Making Equipment Main Features:


  1. Computer program control, high output, good stability and low failure rate.
  2. photoelectric detection of raw materials to avoid errors and reduce waste.
  3. It can produce one to four layers of mask body.
  4. The machine has the function of total count and batch count. The number of batch count can be set arbitrarily.
  5. Replacing the mold can produce masks of different sizes and styles.
  6. the whole machine adopts aluminum alloy structure, beautiful and sturdy.


Mask Making Equipment parameters :


Control system power 1 Phase 220V / 50HZ
Air Pressure 0.6Mpa
Power supply 3Phase 380V 50HZ
servo motor Domestic quality
Control System PLC
sensor Omron, Seak
Pneumatic Components SMC Yadek
Operation screen 10 inch capacitive screen
Bearing NSK
Lead screw Hiwin
Security Safety light grid
Equipment structure 2 ply
equipment power 8.5KW
equipment weight about2.6T
Driven Ordinary motor + servo
Number of applicable layers 3-layer
Applicable materials PP, non-woven fabric, synthetic fiber
Processing methods Ultrasonic welding
Finished product specifications 175*95mm
Technical characteristics
1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed.
2. The production line adopts the structure of 2ply, with high production efficiency
3. Nose clips and ear loop are automatically cut and welded by ultrasound
4. Automatic counting and palletizing after welding earbands


Our Advantages


1. Certified company with CE certificates.

2. Various production line, covering more than 50 different kinds of professional machinery to produce ultrasonic related machine.

3. Advanced technical support and strict quality management system..High-efficiency and timely service by E-mail, Skype, WhatsApp, etc. and 24-hours telephone service.

4. Having many experience in this field, our machine are in great demand at home and abroad. We have exported the machine more than 50 countries.
