Product Details:
Payment & Shipping Terms:
|
Product Name: | Outdoor Digital Advertising Screens | Configuration Type: | U-disk Auto-play / Android OS With Cable Network & WIFI Network Version / Windows OS WIFI Cable Network |
---|---|---|---|
OEM: | YES | Input Power: | 110-240V/50HZ/60HZ |
Viewing Angle: | 178 / 178 | Other Name: | Transparent Window Display |
Contrast Ratio: | 1500:1~5000:1 | Operating Temperature: | -20 ~85ºC |
High Light: | transparent oled touch screen,clear oled display |

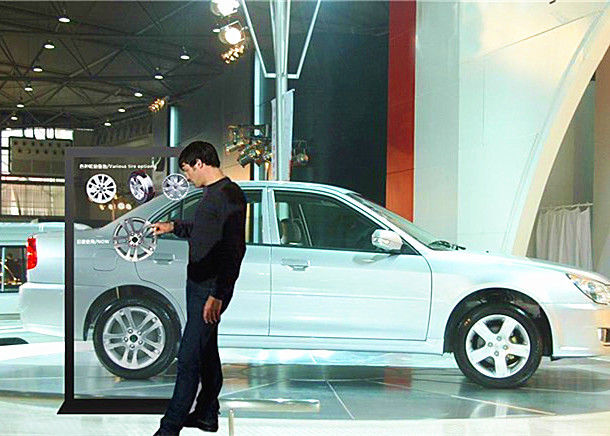

OEM Outdoor Digital Advertising Screens , Large Transparent Window Display
Outdoor Digital Advertising Screens Feature
Outdoor Digital Advertising Screens Application
Outdoor Digital Advertising Screens Advantage
Adopting the latest innovative display, the OLED(Organic Light-Emitting Diode Display) which is recognized as the most advanced energy-saving and environmentally friendly display technology nowadays, make the completed products with advantage of energy-saving and slim feature, its frame can be only 10mm with double-sided display together, this high-end display has a wide range of uses in high-end commercial application like Jewelry Shops/Watch shop/Bar/Hotel/Club, which can greatly enhance the high-end image of luxury commodities like jewel, watch
Outdoor Digital Advertising Screens Configuration:
Configuration Type | Standalone U-disk auto play (based on Android OS) | Android OS with Cable Network & WIFI network version( Content Management Software is included) | Windows OS WIFI Cable Network | |
Unique Function | Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly |
We offer free-of-charge CMS ( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet (Cable Network/Wirelss/ 3G network/ 4G network/ 5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/ monthly/yearly schedule.... |
It's powerful as computers like we daily use, can be with touch function or non touch.It can achieve all the functions of regular computers | |
After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional | ||
Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | ||
Packaging Recyclability | All Packing material are recyclable | |||
Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
||
Operating System | Android OS | Android OS 5.1/6.1/7.0 with Google Playstore | Windows 7/8.1/10 | |
CPU | Dual-core | Android version: Quad-core/Octa-core | Windows version: i3/i5/i7/J1900 | |
GPU | Android version: GPU: Mali-T764 | Android version: GPU: Mali-T764 GPU,supporting 4K resolution |
Windows version: Integrated in CPU HD4600 |
|
RAM | 1G/2G for option | Android version: LPDDR3 2G/4G/8G/16G for option | Windows version:DDR3/DDR4 2G/4G/8G/16G for option | |
Storage | 4G/8G for option | Android version: EMMC 8G/16G/32G/64G for option | Windows version:SSD 32G/64G/128G/562G/1TB for option | |
Cable Network Connectivity | N/A | YES | YES | |
WIFI connectivity | N/A | YES | YES | |
3G/4G/5G Network Connectivity | N/A | Optional | Optional | |
Bluetooth | N/A | Optional | Optional | |
In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input | Android Version: 1xUSB 3.0 , copy speed reach to 16M/S;1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot |
Windows version: 2xUSB3.0,2x USB2.0,1xHDMI,1xRJ45 Cable Network Port,1xVGA, Audio output,Microphone input |
|
Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | 2×8W (8Ω) | |
Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,... etc. support all of the format of video |
|||
Audio Format | MP3..etc. all of the format of audio | |||
Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |||
Operating System Language |
EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language |
|||
Touch Screen Specification (Touch Screen is optional) | Touch Point | N/A | SoftTouch sensitive Real 10 points Mult-touch | |
Touch Type | N/A | Latest Version Infrared Ray SoftTouch | ||
Touch Sensibility: | N/A | <3~5mm | ||
Response Time | N/A | <2ms | ||
Scanning Rate | N/A | 50 scans/s | ||
Available object size for touch | N/A | <2mm | ||
Transparency of Tempered protecting glass | N/A | >95% | ||
Durability of Touch | N/A | No limited | ||
Surface hardness of Touch screen | N/A | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | ||
Display Specification | Display Brand | LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle | ||
Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | |||
Display color | 16.7 Millinium | |||
Brightness (nits) | 600cd/m2 | |||
Contrast | 1500:1 | |||
Visual angle | Full View 178/178 degreee | |||
Response time | 3~5ms | |||
Life(hrs) | >70,000(hrs) |
