Maystar Electronics and Electrical Industry Co.,Ltd
Big Idea Display You Future
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transparent OLED Display | OEM / ODM: | Yes |
|---|---|---|---|
| Brightness: | 500nits | Application: | Advertising |
| Color: | Full Color | Panel Type: | TFT-LCD |
| Control: | Wireless Control | Interface: | HDMI,VGA DVI-D, USB, AV, Microphone |
| High Light: | transparent oled touch screen,clear oled display |
||

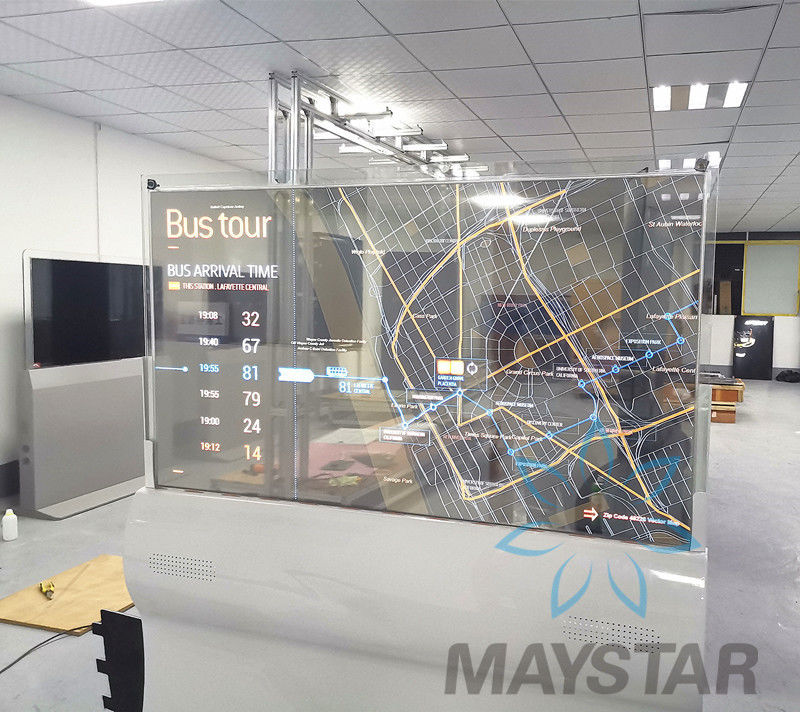

OEM / ODM Transparent OLED Display Ultra Thin Embedded Wireless Control
Transparent OLED Display Feature
1. Portable
2. Seamless connection
3. Ultra thin
4. Easy to maintain
5. Easy to install
6. Noiseless
7. Ghost Cancelling
Transparent OLED Display Advantage
Adopting the latest innovative display, the OLED(Organic Light-Emitting Diode Display) which is recognized as the most advanced energy-saving and environmentally friendly display technology nowadays, make the completed products with advantage of energy-saving and slim feature, its frame can be only 10mm with double-sided display together, this high-end display has a wide range of uses in high-end commercial application like Jewelry Shops/Watch shop/Bar/Hotel/Club, which can greatly enhance the high-end image of luxury commodities like jewel, watch
Transparent OLED Display Parameters
| Configuration Type | Standalone U-disk auto play (based on Android OS) | Android OS with Cable Network & WIFI network version( Content Management Software is included) | |
| Unique Function | Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly |
We offer free-of-charge CMS ( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet (Cable Network/Wirelss/ 3G network/ 4G network/ 5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/ monthly/yearly schedule.... |
|
| After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional | |
| Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | |
| Packaging Recyclability | All Packing material are recyclable | ||
| Main Specification | Display Size | 55" | |
| Packing Material | Veneer Wooden Box( Aluminium Box is optional) | ||
| Power Comsuption | 20W~80W | ||
| Power Supply | Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world | ||
| Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | ||
| Operating temperature | -20 ~85ºC | ||
| Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
|
| Operating System | Android OS | Android OS 5.1/6.1/7.0 with Google Playstore | |
| CPU | Dual-core | Android version: Quad-core/Octa-core | |
| GPU | Android version: GPU: Mali-T764 | Android version: GPU: Mali-T764 GPU,supporting 4K resolution | |
| RAM | 1G/2G for option | Android version: LPDDR3 2G/4G/8G/16G for option | |
| Storage | 4G/8G for option | Android version: EMMC 8G/16G/32G/64G for option | |
| Cable Network Connectivity | N/A | YES | |
| WIFI connectivity | N/A | YES | |
| 3G/4G/5G Network Connectivity | N/A | Optional | |
| Bluetooth | N/A | Optional | |
| In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input | Android Version: 1xUSB 3.0 , copy speed reach to 16M/S;1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot | |
| Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | |
| Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,... etc. support all of the format of video |
||
| Audio Format | MP3..etc. all of the format of audio | ||
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | ||
| Operating System Language |
EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language |
||
| Touch Screen Specification (Touch Screen is optional) | Touch Point | N/A | SoftTouch sensitive Real 10 points Mult-touch |
| Touch Type | N/A | Latest Version Infrared Ray SoftTouch | |
| Touch Sensibility: | N/A | <3~5mm | |
| Response Time | N/A | <2ms | |
| Scanning Rate | N/A | 50 scans/s | |
| Available object size for touch | N/A | <2mm | |
| Transparency of Tempered protecting glass | N/A | >95% | |
| Durability of Touch | N/A | No limited | |
| Surface hardness of Touch screen | N/A | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | |
| Display Specification | Display Brand | LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle | |
| Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | ||
| Display color | 16.7 Millinium | ||
| Brightness (nits) | 600cd/m2 | ||
| Contrast | 1500:1 | ||
| Visual angle | Full View 178/178 degreee | ||
| Response time | 3~5ms | ||
| Life(hrs) | >70,000(hrs) | ||
| Accessories | Qty of Accessories | ||
| 1.User Manual | 1 | ||
| 2.Warranty Card | 1 | ||
| 3.Power Cord | 1 | ||
| 4.Remote Controller | 1 | ||
| 5.Security Door Key | 2 | ||
| 6.WIFI antenna | N/A | 2 | |
Details
