Product Details:
Payment & Shipping Terms:
|
| Product Name: | Thin OLED Display | Size Of Panel: | 55" |
|---|---|---|---|
| Brightness: | 500nits | Feature: | Multifunctional |
| Resolution: | 1920*1080/3840*2160 For Option | Panel Type: | TFT-LCD |
| Installation: | Floor Stand/Wall Mounted/Open Frame Are Optional | Type: | Foldable OLED Display |
| High Light: | transparent oled touch screen,clear oled display |
||
Multifunctional Thin OLED Display / Stable Hdmi OLED Display 55 Inch
Thin OLED Display Features
1. Low cost solution, Low power consumption
2. Consistently accurate, fast touch response,High durability and quick response to touch of any opaque object
3. Dust and water proofing, anti-vandal,Stable and no drift;
4. Not affected by dirt, dust, water, or light,No light spots
5. Affordable touch screen technology, Transparency and high-resolution
6. Antiglare surface treatment, Wide range of temperature
7. Touch Screen Size 2,3. 2,3.4,3.5,3.8,4.0,4.3,4.5,4.7,5.0,5.1,5.4,5.7,5.8,6.0,6.2,6.5,7.0,7.6,8. 0,8.4,8.6,8.9,9.0,10,10.1, 10.2, 10.4,11.3,,12.1,12.2,12.4,13.1,13.3,14.1,15,15.4,17,18.5,19,21.5,22,23.3,27,32 inch (Customer size welcome)
Thin OLED Display Parameters
| Configuration Type | Standalone U-disk auto play (based on Android OS) | Android OS with Cable Network & WIFI network version( Content Management Software is included) | Windows OS WIFI Cable Network | |
| Unique Function | Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly |
We offer free-of-charge CMS ( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet (Cable Network/Wirelss/ 3G network/ 4G network/ 5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/ monthly/yearly schedule.... |
It's powerful as computers like we daily use, can be with touch function or non touch.It can achieve all the functions of regular computers | |
| Main Specification | Display Size | 55" | ||
| Packing Material | Veneer Wooden Box( Aluminium Box is optional) | |||
| Power Comsuption | 20W~80W | |||
| Power Supply | Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world | |||
| Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | |||
| Operating temperature | -20 ~85ºC | |||
| Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
||
| Operating System | Android OS | Android OS 5.1/6.1/7.0 with Google Playstore | Windows 7/8.1/10 | |
| CPU | Dual-core | Android version: Quad-core/Octa-core | Windows version: i3/i5/i7/J1900 | |
| GPU | Android version: GPU: Mali-T764 | Android version: GPU: Mali-T764 GPU,supporting 4K resolution |
Windows version: Integrated in CPU HD4600 |
|
| RAM | 1G/2G for option | Android version: LPDDR3 2G/4G/8G/16G for option | Windows version:DDR3/DDR4 2G/4G/8G/16G for option | |
| Storage | 4G/8G for option | Android version: EMMC 8G/16G/32G/64G for option | Windows version:SSD 32G/64G/128G/562G/1TB for option | |
| Cable Network Connectivity | N/A | YES | YES | |
| WIFI connectivity | N/A | YES | YES | |
| 3G/4G/5G Network Connectivity | N/A | Optional | Optional | |
| Bluetooth | N/A | Optional | Optional | |
| In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input | Android Version: 1xUSB 3.0 , copy speed reach to 16M/S;1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot |
Windows version: 2xUSB3.0,2x USB2.0,1x HDMI,1xRJ45 Cable NetworkPort,1xVGA, Audio output,Microphone input |
|
| Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | 2×8W (8Ω) | |
| Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,... etc. support all of the format of video |
|||
| Audio Format | MP3..etc. all of the format of audio | |||
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |||
| Operating System Language |
EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language |
|||
| Touch Screen Specification (Touch Screen is optional) | Touch Point | N/A | SoftTouch sensitive Real 10 points Mult-touch | |
| Touch Type | N/A | Latest Version Infrared Ray SoftTouch | ||
| Touch Sensibility: | N/A | <3~5mm | ||
| Response Time | N/A | <2ms | ||
| Scanning Rate | N/A | 50 scans/s | ||
| Available object size for touch | N/A | <2mm | ||
| Transparency of Tempered protecting glass | N/A | >95% | ||
| Durability of Touch | N/A | No limited | ||
| Surface hardness of Touch screen | N/A | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | ||
| Display Specification | Display Brand | LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle | ||
| Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | |||
| Display color | 16.7 Millinium | |||
| Brightness (nits) | 600cd/m2 | |||
| Contrast | 1500:1 | |||
| Visual angle | Full View 178/178 degreee | |||
| Response time | 3~5ms | |||
| Life(hrs) | >70,000(hrs) | |||
| Accessories | Qty of Accessories | |||
| 1.User Manual | 1 | |||
| 2.Warranty Card | 1 | |||
| 3.Power Cord | 1 | |||
| 4.Remote Controller | 1 | N/A | ||
| 5.Security Door Key | 2 | |||
| 6.WIFI antenna | N/A | 2 | ||

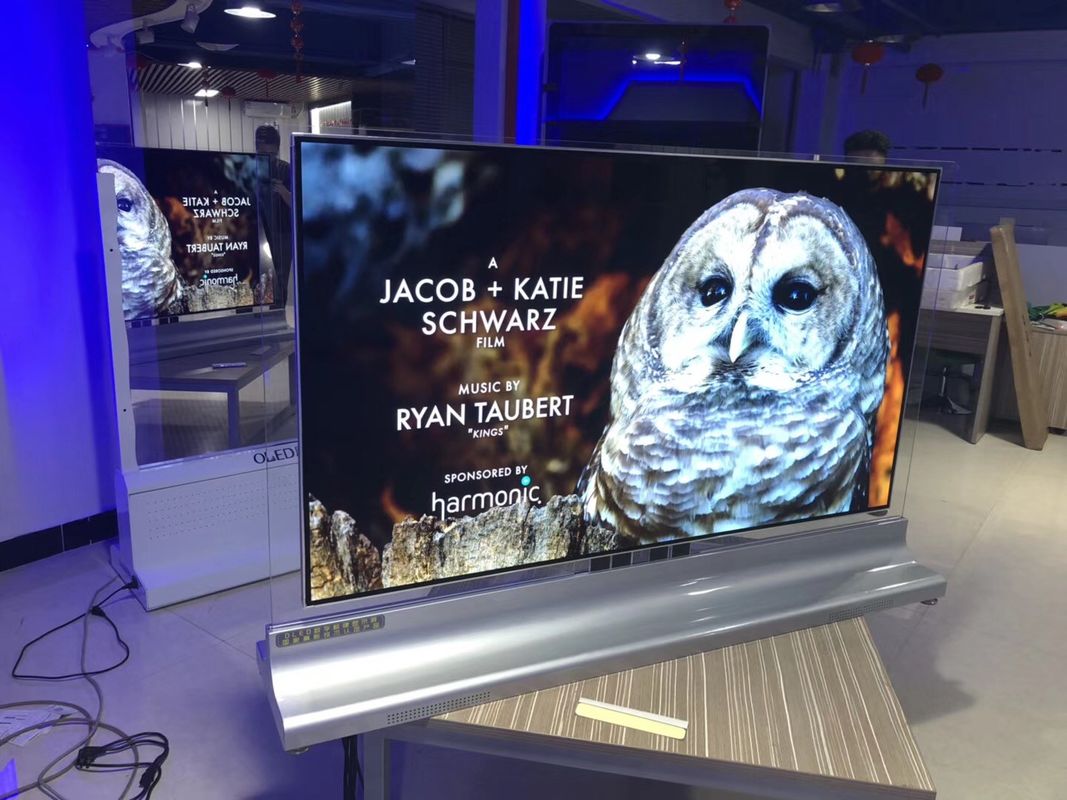

Thin OLED Display Details
