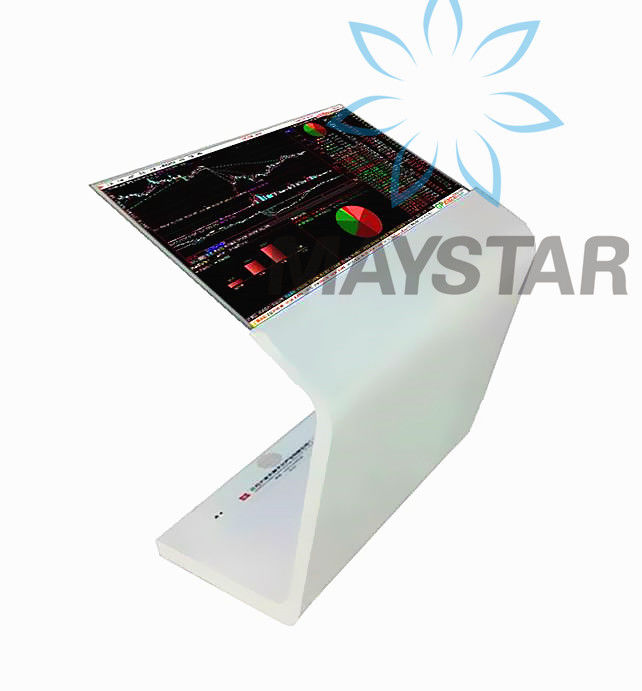

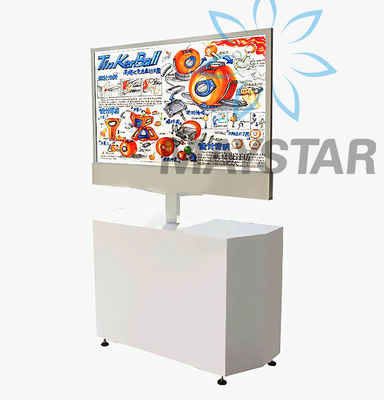

Multi Functional Transparent OLED Display 500 nits Brightness With Touch Screen

Certification
Good quality Outdoor Touch Screen Kiosk for sales
Good quality Outdoor Touch Screen Kiosk for sales
I'm Online Chat Now

Multi Functional Transparent OLED Display 500 nits Brightness With Touch Screen

China Multi Functional Transparent OLED Display 500 nits Brightness With Touch Screen supplier
Multi Functional Transparent OLED Display 500 nits Brightness With Touch Screen supplier Multi Functional Transparent OLED Display 500 nits Brightness With Touch Screen supplier

Large Image :  Multi Functional Transparent OLED Display 500 nits Brightness With Touch Screen

Product Details:

Place of Origin: China
Brand Name: Maystar/KarmerMarker/Megapack
Certification: CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS
Model Number: MS1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed with Strong EPE and Carton Box, Wooden Box
Delivery Time: 7~15 days
Payment Terms: TT/LC/Paypal/Western Union
Supply Ability: 3000 units
Contact Now
Detailed Product Description
Product Name: Transparent OLED Touch Screen Size Of Panel: 55"
Brightness: 500nits Application: Subway, Airports, Stations
Resolution: 1920*1080/3840*2160 For Option OSD Language: Multi-language Support
Contrast Ratio: 1500:1~5000:1 Packaging Details: Packed With Strong EPE And Carton Box, Wooden Box
High Light:

transparent oled touch screen

,

touch screen interactive display

Multi Functional Transparent OLED Display 500 nits Brightness With Touch Screen



Description
1. What is Organic Light Emitting Diodes (OLEDs)?
Organic light emitting diodes (devices) or OLEDs are monolithic, solid-state devices that typically consist of a series of organic thin films sandwiched between two thin-film conductive electrodes. When electricity is applied to an OLED, under the influence of an electrical field, charge carriers (holes and electrons) migrate from the electrodes into the organic thin films until they recombine in the emissive zone forming excitons. Once formed, these excitons, or excited states, relax to a lower energy level by giving off light (electroluminescence) and/or unwanted heat.The basic OLED cell structure consists of a stack of thin organic layers sandwiched between a conducting anode and a conducting cathode.



Breakdown of an OLED structure:
A. Substrate (can be plastic, glass, or metal foil) – Foundation of the OLED
B. Anode (may or may not be transparent depending on the type of OLED) – Positively charged to injects holes (absence of electrons) into the organic layers that make up the OLED device
C. Hole Injection Layer (HIL) – Deposited on top of the anode this layer receives holes from the anode and injects them deeper into the device
D. Hole Transport Layer (HTL) – This layer supports the transport of holes across it so they can reach the emissive layer
E. Emissive Layer – The heart of the device and where light is made, the emissive layer consists of a color defining emitter doped into a host. This is the layer where the electrical energy is directly converted into light.
F. Blocking layer (BL) – Commonly used to improve OLED technology by confining electrons (charge carriers) to the emissive layer
G. Electron Transport Layer (ETL) – Supports the transport of electrons across it so they can reach the emissive layer.
H. Cathode (may or may not be transparent depending on the type of OLED) – Negatively charged to inject electrons into the organic layers that make up the OLED device.



2. Superior Aesthetics
On- cell touch without sacrificing fill factor
Low UV output
Flexible
Improved image quality
Thin and Light
180 degree viewing angle
Infinite contrast ratio and an infinite dynamic range
Real-time video speeds – excellent for 3D
Self-emissive display



Applications
airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course ,large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. negotiable securities, funds, insurance companies, pawnshops;



Maystar Transparent OLED Displays are optional with 3 types of Configuration:
Advantage

Adopting the latest innovative display, the OLED(Organic Light-Emitting Diode Display ) which is recognized as the most advanced energy-saving and environmentally friendly display technology nowadays, make the completed products with advantage of energy saving and slim feature, its frame can be only 10mm with double-sided display together, this high-end display has a wide range of uses in high-end commercial application like Jewelry Shops/Watch shop/Bar/Hotel/Club, which can greatly enhance the high-end image of luxury commodities like jewel, watch

Configuration Type

Standalone U-disk auto play (based on Android OS)

Android OS with Cable Network & WIFI network version( Content Management Software is included)

Windows OS WIFI Cable Network

Unique Function

Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly

We offer free-of-charge CMS

( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet (Cable Network/Wirelss/ 3G network/ 4G network/ 5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/ monthly/yearly schedule....

It's powerful as computers like we daily use, can be with touch function or non touch.It can achieve all the functions of regular computers

After-Sale Service Term Warranty Period

One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional

Certificate& Green Management CE CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS
Packaging Recyclability All Packing material are recyclable
Main Specification Display Size 55"
Packing Material Veneer Wooden Box( Aluminium Box is optional)
Power Comsuption 20W~80W
Power Supply

Wide range power input : 110-240V/50HZ/60HZ workable in every country all around

the world

Enclosure Material High-strength fully High-temperred Glass,Coat Painting Strong Steel
Operating temperature -20 ~85ºC
Mainboard Specification Mainboard

Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid

Capacitor design ; High Density Glass Fabric PCB

Operating System Android OS Android OS 5.1/6.1/7.0 with Google Playstore Windows 7/8.1/10
CPU Dual-core Android version: Quad-core/Octa-core Windows version: i3/i5/i7/J1900
GPU Android version: GPU: Mali-T764 Android version: GPU: Mali-T764 GPU,supporting 4K resolution

Windows version: Integrated

in CPU HD4600

RAM 1G/2G for option Android version: LPDDR3 2G/4G/8G/16G for option Windows version:DDR3/DDR4 2G/4G/8G/16G for option
Storage 4G/8G for option Android version: EMMC 8G/16G/32G/64G for option Windows version:SSD 32G/64G/128G/562G/1TB for option
Cable Network Connectivity N/A YES YES
WIFI connectivity N/A YES YES
3G/4G/5G Network Connectivity N/A Optional Optional
Bluetooth N/A Optional Optional
In/Out Interface 2xUSB USB or 2xUSB,1xHDMI input Android Version: 1xUSB 3.0 , copy speed reach to 16M/S;1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot

Windows version:2xUSB3.0,2x

USB2.0,1xHDMI,1xRJ45

Cable Network Port,1xVGA,

Audio output,Microphone input

  Speaker Power 2×6W (8Ω) 2×8W (8Ω) 2×8W (8Ω)
  Video Format

MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,...

etc. support all of the format of video

  Audio Format MP3..etc. all of the format of audio
  Image Format JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image
  Operating System Language

EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew

... any all other language

Touch Screen Specification (Touch Screen is optional) Touch Point N/A SoftTouch sensitive Real 10 points Mult-touch
Touch Type N/A Latest Version Infrared Ray SoftTouch
Touch Sensibility: N/A <3~5mm
Response Time N/A <2ms
Scanning Rate N/A 50 scans/s
Available object size for touch N/A <2mm
Transparency of Tempered protecting glass N/A >95%
Durability of Touch N/A No limited
Surface hardness of Touch screen N/A Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball
Display Specification Display Brand LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle
Max Resolution FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional
Display color 16.7 Millinium
Brightness (nits) 600cd/m2
Contrast 1500:1
Visual angle Full View 178/178 degreee
Response time 3~5ms
Life(hrs) >70,000(hrs)

  Accessories Qty of Accessories
  1.User Manual 1
  2.Warranty Card 1
  3.Power Cord 1
  4.Remote Controller 1   N/A
  5.Security Door Key 2
  6.WIFI antenna N/A 2
