Maystar Electronics and Electrical Industry Co.,Ltd
Big Idea Display You Future
Product Details:
Payment & Shipping Terms:
|
| Product Name: | LCD Digital Signage Display | Size Of Panel: | 15"~84" |
|---|---|---|---|
| Brightness: | 300~500nits | Application: | Bookstores, Exhibition Halls |
| Interface: | HDMI,VGA DVI-D, USB, AV, Microphone | Custom Service: | Custom Accepted |
| Contrast Ratio: | 1500:1~5000:1 | APP Applications: | Google Map, App Market,Email, Etc |
| High Light: | floor standing lcd advertising display,lcd advertising display screen |
||

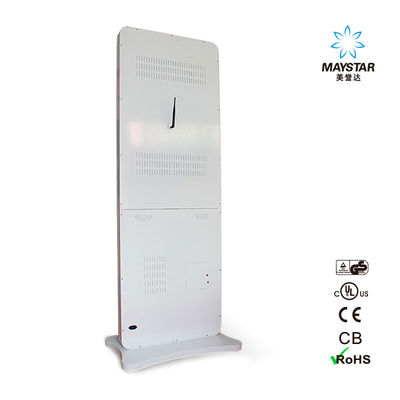

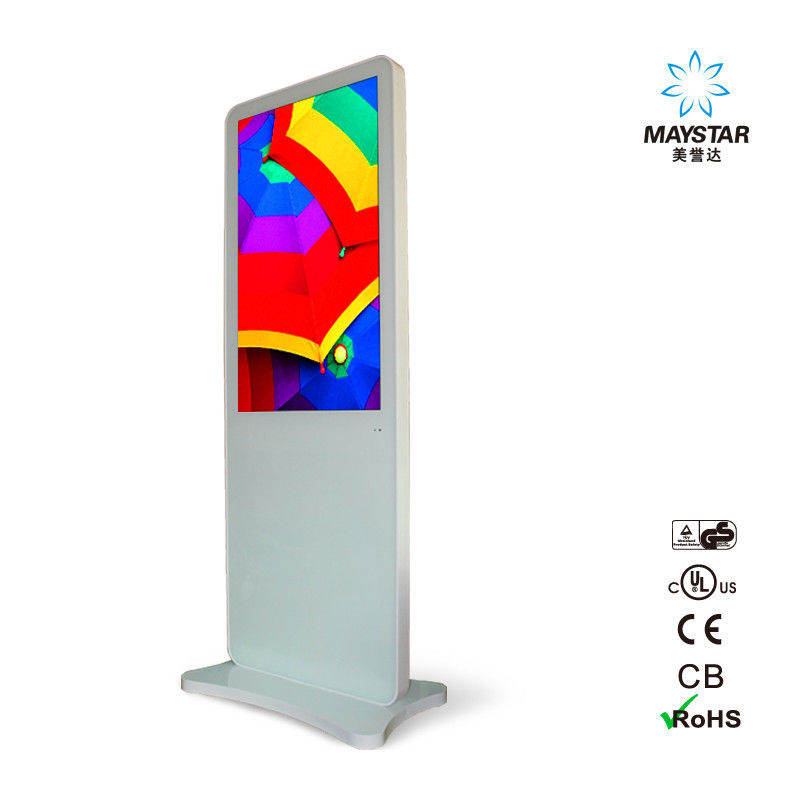

Multi Functional Digital Advertising Screens Custom Accepted For Shopping Mall
Description :
1, Adopt High-Strength Aluminium Alloy, Hardened Coat Painting Metal, 6mm thickness Anti-Vanal High Tempered Glass,antistatic,preventing magnetic strong interference.
2, With 6mm thickness tempered glass as protection layer against the surface of LCD screen.
3, Adopt newest LG / SAMSUNG A+ Grade TFT-LCD screen,with high contrast ration,high brightness,last longer and work better.
4, With USB update feature; support functions between the card and card copying files (such as CF card to SD card,or SD to CF card etc.); support U-copy, conveniently and quickly updating target content, more details please visit user manual.
5, Playing advertising program automatically and circular; support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX (5.0/6.0).
6, Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
7, Build-in clock and calendar function in the system of player.
8, Physical resolution up to 1920*1080,compatible below resolution.automatically adjust to the best place.
9, The scientific Golden Angle Design is adopted for the body, super-thin and light machine body.
10. Built in with camera, printer, scanner, keyboard, card payment.
| Maystar Digital Advertising Screens are optional with 3 types of Configuration: | ||||
| Configuration Type | Standalone U-disk auto-play (based on Android OS) | Android OS with Cable Network & WIFI network version( Content Management Software is included) |
Windows OS WIFI Cable Network |
|
| After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional | ||
| Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | ||
| Packaging Recyclability | All Packing material are recyclable | |||
| Main Specification | Display Size | 15'', 17",19",22",26", 32'',43'',47",49",50",55",65",75",82" 86" | ||
| Packing Material | Veneer Wooden Box( Aluminium Box is optional) | |||
| Power Comsuption | 20W~80W | |||
| Power Supply |
Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world |
|||
| Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | |||
| Operating temperature | -20 ~85ºC | |||
| Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
||
| Operating System | Android OS |
Android OS 5.1/6.0/7.0 with Google Playstore |
Windows 8.1/10 | |
| CPU | Dual-core |
Android version: Quad-core /Octa-core |
Windows version: i3/i5/i7/J1900 | |
| GPU | Android version: GPU: Mali-T764 | Android version: GPU: Mali-T764 GPU,supporting 4K resolution |
Windows version: Integrated in CPU HD4600 |
|
| RAM | 1G/2G for option |
Android version: LPDDR3 2G/4G/8G/16G for option |
Windows version: DDR3/ DDR4 2G/4G/8G/16G for option |
|
| Storage | 4G/8G for option |
Android version: EMMC 8G/16G/32G/64G for option |
Windows version:SSD 32G/ 64G/128G/562G/1TB for option |
|
| Cable Network Connectivity | N/A | YES | YES | |
| WIFI connectivity | N/A | YES | YES | |
| 3G/4G/5G Network Connectivity | N/A | Optional | Optional | |
| Bluetooth | N/A | Optional | Optional | |
| In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input |
Android Version: 1xUSB 3.0 , copy speed reach to 16M/S; 1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot |
Windowsversion:2xUSB3.0,2x USB2.0,1xHDMI, 1xRJ45 Cable Network Port, 1xVGA, Audio output, Microphone input |
|
| Unique Function | Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly |
We offer free-of-charge CMS ( Content Management Software), with which you will be able to access to all of computer via Internet(Cable Network/Wirelss/3G network/4G network/5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/monthly/yearly schedule.... |
It's powerful as computers like we daily use, can be with touch function or non-touch. | |
| Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | 2×8W (8Ω) | |
| Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2),MPEG1(VCD:DAT/MPG1), WMV, MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,...etc. support all of the format of video |
|||
| Audio Format | MP3..etc. all of the format of audio | |||
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |||
| Operating System Language |
English/Русский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language |
|||
| Touch Screen Specification (Touch Screen is optional) | Touch Point | N/A |
SoftTouch sensitive Real 10 points Mult-touch |
|
| Touch Type | N/A | Latest Version Infrared Ray SoftTouch | ||
| Touch Sensibility: | N/A | <2mm | ||
| Response Time | N/A | <2ms | ||
| Scanning Rate | N/A | 50 scans/s | ||
| Available object size for touch | N/A | <2mm | ||
| Transparency of Tempered protecting glass | N/A | >95% | ||
| Durability of Touch | N/A | No limited | ||
| Surface hardness of Touch screen | N/A |
Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball |
||
| Display Specification | Display Brand |
LG / SAMSUNG Original A+Grade display A + grade, without any light spot or black spot and Full Viewing Angle |
||
| Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | |||
| Display color | 16.7 Millinium | |||
| Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |||
| Brightness (nits) | 600cd/m2 | |||
| Contrast | 1500:1 | |||
| Visual angle | Full View 178/178 degreee | |||
| Response time | 3~5ms | |||
| Life(hrs) | >70,000(hrs) | |||
| Quantity of Accessories | 1.User Manual | 1 | 1 | 1 |
| 2.Warranty Card | 1 | 1 | 1 | |
| 3.Power Cord | 1 | 1 | 1 | |
| 4.Remote Controller | 1 | 1 | N/A | |
| 5.Security Door Key | 2 | 2 | 2 | |
| 6.WIFI antenna | N/A | 2 | 2 | |
