Maystar Electronics and Electrical Industry Co.,Ltd
Big Idea Display You Future
Product Details:
Payment & Shipping Terms:
|
Size Of Panel: | Custom Design | Brightness: | 1500~4500cd/㎡ |
---|---|---|---|
Application: | Clubs, Massage Rooms | Installation: | Hangling Or Staching |
Enclosure Material: | Aluminium Alloy | Enclosure Color: | Silver/Black/White/Red/Golden Or Other Custom Color |
Packaging Details: | Packed With Strong EPE And Carton Box, Wooden Box | ||
High Light: | transparent glass led screen,transparent window display |
Indoor Transparent Video Glass Screen Multi Language Support For Showcase
Advantage of Transparent LED Display :
1. Fanless Design & Convenient maintenance : Working in noiseless condition and energy-saving.
2. High transparency : Up to 80% transparency , with PC protection, won’t affect the building lighting itself.
3. No steel frame construction, Ultra slim & light weight : Individually remove and replaceable, improves the installation efficiency
Applications
exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.negotiable securities, funds, insurance companies, pawnshops;Telecommunications, post offices, hospital, schools; stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
Description:

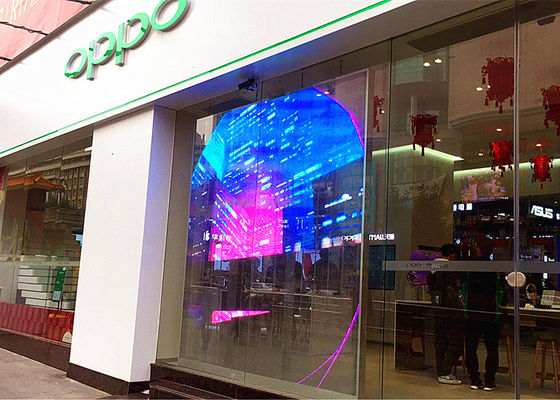

Transparent LED Display is a innovative technology allowing you to turn your window into a digital billboard, suitable for advertising all products and services. The integrated LED lamps are almost invisible from the outside of the building, thus making no difference to its appearance. This type of digital signage provides up to 80% transparency which enables you to still be able to look through the glass window.
Pixel pitch: | 3.91-7.82mm | 7.82-7.82mm | 10.4-10.4mm |
Module size: | 500*1000mm/1000*1000mm | 500*1000mm/1000*1000mm | 500*1000mm/1000*1000mm |
Pixel density: | 32768px/㎡ | 16384px/㎡ | 9216px/㎡ |
Color: | 1R1G1B SMD Lamp 1921 | 1R1G1B SMD Lamp 2525/2727 | 1R1G1B SMD Lamp 3535 or 1R1G1B SMD Lamp 1206 |
The optimal viewing distance: | 5~100m | 8~100m | 12~100m |
Transparency: | ≥65% | ≥70% | ≥75% |
Viewing angle: | Horizontal : 120°~120°, Vertical : 120°~120° | Horizontal : 120°~120°, Vertical : 120°~120° | Horizontal : 120°~120°, Vertical : 120°~120° |
Storage temperature | _40℃~+80℃ | _40℃~+80℃ | _40℃~+80℃ |
Working Temperature | _20℃~+50℃ | _20℃~+50℃ | _20℃~+50℃ |
Thickness: | 8cm | 8cm | 8cm |
Average power : | 100~150W/㎡ | 100~150W/㎡ | 150~200W/㎡ |
Max consumption: | ≤450W/㎡ | ≤450W/㎡ | ≤600W/㎡ |
Drive mode: | 1/16S or 1/8S | 1/8S or 1/4S | 1/2S |
Refresh rate: | ≥1920Hz | ≥1920Hz | ≥1080Hz |
White balance brightness: | ≥1200cd/㎡ or ≥4500cd/㎡ | ≥1200cd/㎡ or ≥4500cd/㎡ | 4500cd/㎡ or ≥5000cd/㎡ |
Mean time of failure: | ≥6500 hours | ≥6500 hours | ≥6500 hours |
Span Life: | ≥100000 hours | ≥100000 hours | ≥100000 hours |
Installation: | Hangling or staching | Hangling or staching | Hangling or staching |
Protection class: | IP30 | IP30 | IP30 |
