Maystar Electronics and Electrical Industry Co.,Ltd
Big Idea Display You Future
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transparent OLED Display | Size Of Panel: | 55" |
|---|---|---|---|
| Brightness: | 500nits | Application: | Home |
| Resolution: | High Resolution | Panel Type: | TFT-LCD |
| Installation: | Floor Stand/Wall Mounted/Open Frame Are Optional | Interface: | VGA DVI-D, USB, AV, Microphone |
| High Light: | transparent oled touch screen,clear oled display |
||

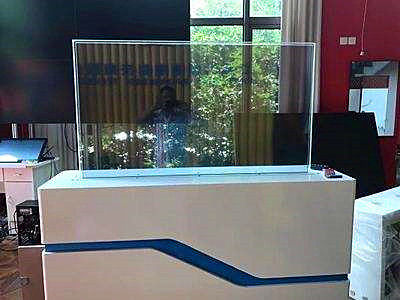

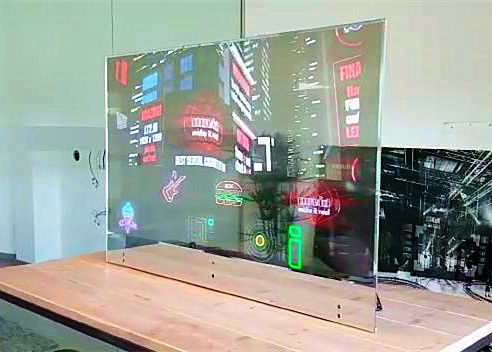

High Resolution Transparent OLED Display 1920*1080/3840*2160 For Option
Transparent OLED Display Introduction
Organic light emitting diodes (devices) or OLEDs are monolithic, solid-state devices that typically consist of a series of organic thin films sandwiched between two thin-film conductive electrodes. When electricity is applied to an OLED, under the influence of an electrical field, charge carriers (holes and electrons) migrate from the electrodes into the organic thin films until they recombine in the emissive zone forming excitons. Once formed, these excitons, or excited states, relax to a lower energy level by giving off light (electroluminescence) and/or unwanted heat.The basic OLED cell structure consists of a stack of thin organic layers sandwiched between a conducting anode and a conducting cathode.
Transparent OLED Display Aesthetics
Transparent OLED Display Advantage
Adopting the latest innovative display, the OLED(Organic Light-Emitting Diode Display) which is recognized as the most advanced energy-saving and environmentally friendly display technology nowadays, make the completed products with advantage of energy-saving and slim feature, its frame can be only 10mm with double-sided display together, this high-end display has a wide range of uses in high-end commercial application like Jewelry Shops/Watch shop/Bar/Hotel/Club, which can greatly enhance the high-end image of luxury commodities like jewel, watch
Transparent OLED Display Parameters
| Configuration Type | Standalone U-disk auto play (based on Android OS) | Android OS with Cable Network & WIFI network version( Content Management Software is included) | Windows OS WIFI Cable Network | |
| After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional | ||
| Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | ||
| Packaging Recyclability | All Packing material are recyclable | |||
| Main Specification | Display Size | 55" | ||
| Packing Material | Veneer Wooden Box( Aluminium Box is optional) | |||
| Power Comsuption | 20W~80W | |||
| Power Supply | Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world | |||
| Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | |||
| Operating temperature | -20 ~85ºC | |||
| Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
||
| Operating System | Android OS | Android OS 5.1/6.1/7.0 with Google Playstore | Windows 7/8.1/10 | |
| CPU | Dual-core | Android version: Quad-core/Octa-core | Windows version: i3/i5/i7/J1900 | |
| GPU | Android version: GPU: Mali-T764 | Android version: GPU: Mali-T764 GPU,supporting 4K resolution |
Windows version: Integrated in CPU HD4600 |
|
| RAM | 1G/2G for option | Android version: LPDDR3 2G/4G/8G/16G for option | Windows version:DDR3/DDR4 2G/4G/8G/16G for option | |
| Storage | 4G/8G for option | Android version: EMMC 8G/16G/32G/64G for option | Windows version:SSD 32G/64G/128G/562G/1TB for option | |
| Cable Network Connectivity | N/A | YES | YES | |
| WIFI connectivity | N/A | YES | YES | |
| 3G/4G/5G Network Connectivity | N/A | Optional | Optional | |
| Bluetooth | N/A | Optional | Optional | |
| In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input | Android Version: 1xUSB 3.0 , copy speed reach to 16M/S;1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot |
Windows version: 2xUSB3.0,2x USB2.0,1x HDMI,1xRJ45 Cable NetworkPort,1xVGA, Audio output,Microphone input |
|
| Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | 2×8W (8Ω) | |
| Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,... etc. support all of the format of video |
|||
| Audio Format | MP3..etc. all of the format of audio | |||
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |||
| Operating System Language |
EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language |
|||
| Touch Screen Specification (Touch Screen is optional) | Touch Point | N/A | SoftTouch sensitive Real 10 points Mult-touch | |
| Touch Type | N/A | Latest Version Infrared Ray SoftTouch | ||
| Touch Sensibility: | N/A | <3~5mm | ||
| Response Time | N/A | <2ms | ||
| Scanning Rate | N/A | 50 scans/s | ||
| Available object size for touch | N/A | <2mm | ||
| Transparency of Tempered protecting glass | N/A | >95% | ||
| Durability of Touch | N/A | No limited | ||
| Surface hardness of Touch screen | N/A | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | ||
| Display Specification | Display Brand | LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle | ||
| Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | |||
| Display color | 16.7 Millinium | |||
| Brightness (nits) | 600cd/m2 | |||
| Contrast | 1500:1 | |||
| Visual angle | Full View 178/178 degreee | |||
| Response time | 3~5ms | |||
| Life(hrs) | >70,000(hrs) | |||
| Accessories | Qty of Accessories | |||
| 1.User Manual | 1 | |||
| 2.Warranty Card | 1 | |||
| 3.Power Cord | 1 | |||
| 4.Remote Controller | 1 | N/A | ||
| 5.Security Door Key | 2 | |||
| 6.WIFI antenna | N/A | 2 | ||
