Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transparent Window Display | Size Of Panel: | Custom Design |
|---|---|---|---|
| Application: | Exhibition Halls, Stadiums | Panel Type: | LED |
| Installation: | Hangling Or Staching | Enclosure Material: | Aluminium Alloy |
| Enclosure Color: | Silver/Black/White/Red/Golden Or Other Custom Color | Viewing Angle: | Horizontal : 120°～120°, Vertical : 120°～120° |
| High Light: | transparent window display,see through led screen |
||

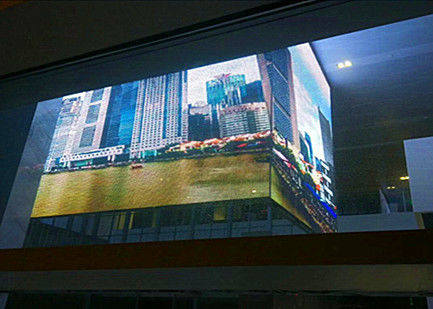

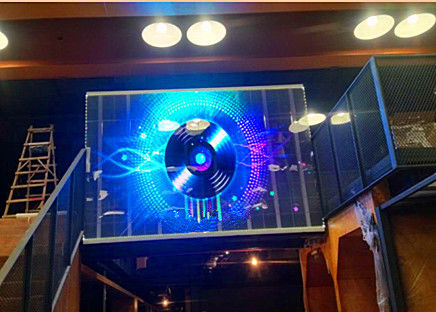

High Definition Transparent LED Display Hanging / Stacking Installation For Stations
Description:
Transparent LED Display is a innovative technology allowing you to turn your window into a digital billboard, suitable for advertising all products and services. The integrated LED lamps are almost invisible from the outside of the building, thus making no difference to its appearance. This type of digital signage provides up to 80% transparency which enables you to still be able to look through the glass window.
1. Indoor maintenance, quick and safe, save manpower and material resources.no traditional air conditioning cooling system, save more than 35% energy than ordinary LED display.
2. It has a very high perspective and has a permeability of 60% to 95%, which ensures the lighting requirements and viewing angle range of the lighting structure between floors, glass facades and windows, and ensures the original lighting perspective function of the glass curtain wall. The screen body thickness is only 8cm, and the display screen body generally weighs only 15Kg/m2.
3. No steel frame construction, save a lot of installation and maintenance costs. Directly fixed on the glass curtain wall.Unique display effect: because the display background is transparent, the advertisement picture can be suspended on the glass curtain wall, shows good advertisement effect and artistic effect.
Advantage of Transparent LED Display :
1. No steel frame construction, Ultra slim & light weight : Individually remove and replaceable, improves the installation efficiency
2. High transparency : Up to 80% transparency , with PC protection, won’t affect the building lighting itself.
3. Fanless Design & Convenient maintenance : Working in noiseless condition and energy-saving.
| Pixel pitch: | 3.91-7.82mm | 7.82-7.82mm | 10.4-10.4mm |
| Module size: | 500*1000mm/1000*1000mm | 500*1000mm/1000*1000mm | 500*1000mm/1000*1000mm |
| Pixel density: | 32768px/㎡ | 16384px/㎡ | 9216px/㎡ |
| Color: | 1R1G1B SMD Lamp 1921 | 1R1G1B SMD Lamp 2525/2727 | 1R1G1B SMD Lamp 3535 or 1R1G1B SMD Lamp 1206 |
| The optimal viewing distance: | 5～100m | 8～100m | 12～100m |
| Transparency: | ≥65% | ≥70% | ≥75% |
| Viewing angle: | Horizontal : 120°～120°, Vertical : 120°～120° | Horizontal : 120°～120°, Vertical : 120°～120° | Horizontal : 120°～120°, Vertical : 120°～120° |
| Storage temperature | _40℃～+80℃ | _40℃～+80℃ | _40℃～+80℃ |
| Working Temperature | _20℃～+50℃ | _20℃～+50℃ | _20℃～+50℃ |
| Thickness: | 8cm | 8cm | 8cm |
| Average power : | 100～150W/㎡ | 100～150W/㎡ | 150～200W/㎡ |
| Max consumption: | ≤450W/㎡ | ≤450W/㎡ | ≤600W/㎡ |
| Drive mode: | 1/16S or 1/8S | 1/8S or 1/4S | 1/2S |
| Refresh rate: | ≥1920Hz | ≥1920Hz | ≥1080Hz |
| White balance brightness: | ≥1200cd/㎡ or ≥4500cd/㎡ | ≥1200cd/㎡ or ≥4500cd/㎡ | 4500cd/㎡ or ≥5000cd/㎡ |
| Mean time of failure: | ≥6500 hours | ≥6500 hours | ≥6500 hours |
| Span Life: | ≥100000 hours | ≥100000 hours | ≥100000 hours |
| Installation: | Hangling or staching | Hangling or staching | Hangling or staching |
| Protection class: | IP30 | IP30 | IP30 |
