Fast Installation Transparent OLED Touch Display , Display OLED 128x64

China Fast Installation Transparent OLED Touch Display , Display OLED 128x64 supplier

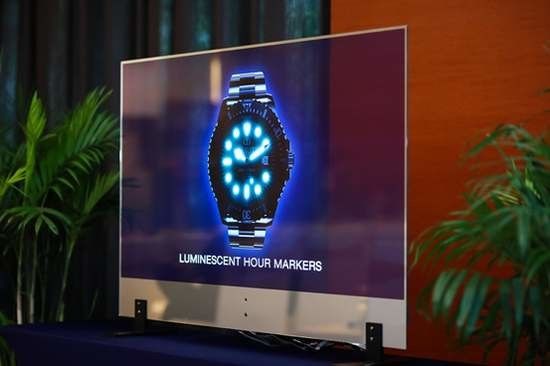

Large Image :  Fast Installation Transparent OLED Touch Display , Display OLED 128x64

Product Details:

Place of Origin: China
Brand Name: Maystar/KarmerMarker/Megapack
Certification: CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS
Model Number: Transparent OLED Display

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Packed with Strong EPE and Carton Box, Wooden Box
Delivery Time: 7~15 days
Payment Terms: TT/LC/Paypal/Western Union
Supply Ability: 3000 units
Contact Now
Detailed Product Description
Name: Transparent OLED Touch Display Size Of Panel: 55"
Feature: Fast Installation Application: Indoor
Resolution: 128x64 Panel Type: TFT-LCD
Installation: Wall Mounted/Open Frame Are Optional Interface: HDMI,VGA DVI-D, USB, AV, Microphone
High Light:

transparent oled touch screen

,

clear oled display

Fast Installation Transparent OLED Touch Display , Display OLED 128x64



Breakdown of an Transparent OLED Touch Display structure:



  1. Substrate (can be plastic, glass, or metal foil) – Foundation of the OLED
  2. Hole Transport Layer (HTL) – This layer supports the transport of holes across it so they can reach the emissive layer
  3. Emissive Layer – The heart of the device and where light is made, the emissive layer consists of a color defining emitter doped into a host. This is the layer where the electrical energy is directly converted into light.
  4. Blocking layer (BL) – Commonly used to improve OLED technology by confining electrons (charge carriers) to the emissive layer
  5. Electron Transport Layer (ETL) – Supports the transport of electrons across it so they can reach the emissive layer.
  6. Cathode (may or may not be transparent depending on the type of OLED) – Negatively charged to inject electrons into the organic layers that make up the OLED device.



Transparent OLED Touch Display Aesthetics



  1. Improved image quality
  2. Thin and Light
  3. 180 degree viewing angle
  4. On- cell touch without sacrificing fill factor
  5. Low UV output
  6. Flexible
  7. The body of the products can be adopted with High-Strength Aluminium Alloy, Hardened Coat Painting Metal, Anti-Vanal High Tempered Glass,antistatic,preventing magnetic strong interference.



Transparent OLED Touch Display Advantage



Adopting the latest innovative display, the OLED(Organic Light-Emitting Diode Display) which is recognized as the most advanced energy-saving and environmentally friendly display technology nowadays, make the completed products with advantage of energy-saving and slim feature, its frame can be only 10mm with double-sided display together, this high-end display has a wide range of uses in high-end commercial application like Jewelry Shops/Watch shop/Bar/Hotel/Club, which can greatly enhance the high-end image of luxury commodities like jewel, watch



Transparent OLED Touch Display Parameters



Configuration Type Standalone U-disk auto play (based on Android OS) Android OS with Cable Network & WIFI network version( Content Management Software is included)
Unique Function Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly

We offer free-of-charge CMS

( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet (Cable Network/Wirelss/ 3G network/ 4G network/ 5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/ monthly/yearly schedule....

After-Sale Service Term Warranty Period One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional
Certificate& Green Management CE CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS
Packaging Recyclability All Packing material are recyclable
Main Specification Display Size 55"
Packing Material Veneer Wooden Box( Aluminium Box is optional)
Power Comsuption 20W~80W
Power Supply Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world
Enclosure Material High-strength fully High-temperred Glass,Coat Painting Strong Steel
Operating temperature -20 ~85ºC
Mainboard Specification Mainboard

Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid

Capacitor design ; High Density Glass Fabric PCB

Operating System Android OS Android OS 5.1/6.1/7.0 with Google Playstore
CPU Dual-core Android version: Quad-core/Octa-core
GPU Android version: GPU: Mali-T764 Android version: GPU: Mali-T764 GPU,supporting 4K resolution
RAM 1G/2G for option Android version: LPDDR3 2G/4G/8G/16G for option
Storage 4G/8G for option Android version: EMMC 8G/16G/32G/64G for option
Cable Network Connectivity N/A YES
WIFI connectivity N/A YES
3G/4G/5G Network Connectivity N/A Optional
Bluetooth N/A Optional
In/Out Interface 2xUSB USB or 2xUSB,1xHDMI input Android Version: 1xUSB 3.0 , copy speed reach to 16M/S;1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot
  Speaker Power 2×6W (8Ω) 2×8W (8Ω)
  Video Format

MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,...

etc. support all of the format of video

  Audio Format MP3..etc. all of the format of audio
  Image Format JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image
  Operating System Language

EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew

... any all other language

Touch Screen Specification (Touch Screen is optional) Touch Point N/A SoftTouch sensitive Real 10 points Mult-touch
Touch Type N/A Latest Version Infrared Ray SoftTouch
Touch Sensibility: N/A <3~5mm
Response Time N/A <2ms
Scanning Rate N/A 50 scans/s
Available object size for touch N/A <2mm
Transparency of Tempered protecting glass N/A >95%
Durability of Touch N/A No limited
Surface hardness of Touch screen N/A Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball
Display Specification Display Brand LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle
Max Resolution FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional
Display color 16.7 Millinium
Brightness (nits) 600cd/m2
Contrast 1500:1
Visual angle Full View 178/178 degreee
Response time 3~5ms
Life(hrs) >70,000(hrs)

  Accessories Qty of Accessories
  1.User Manual 1
  2.Warranty Card 1
  3.Power Cord 1
  4.Remote Controller 1
  5.Security Door Key 2
  6.WIFI antenna N/A 2



Details



Fast Installation Transparent OLED Touch Display , Display OLED 128x64
