Product Details:
Payment & Shipping Terms:
|

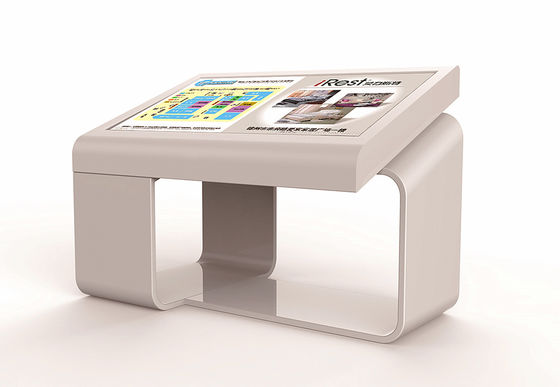

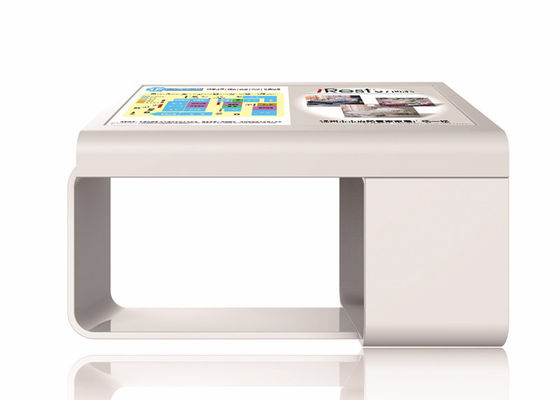

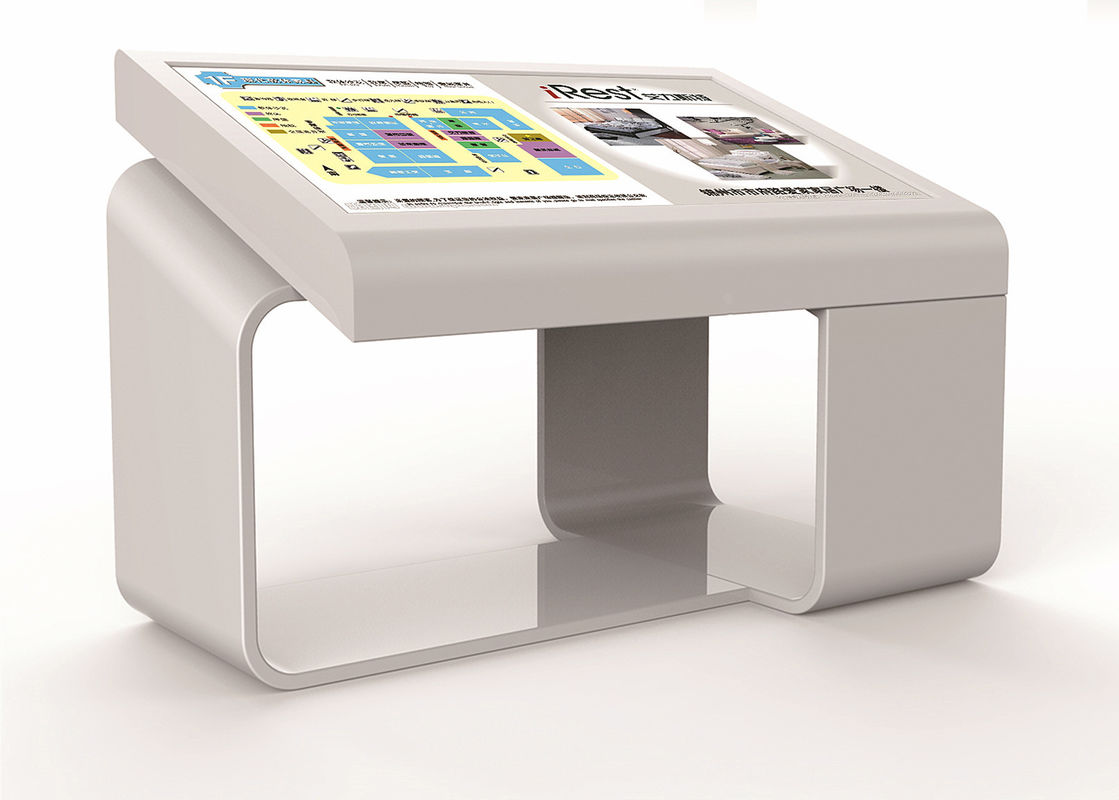

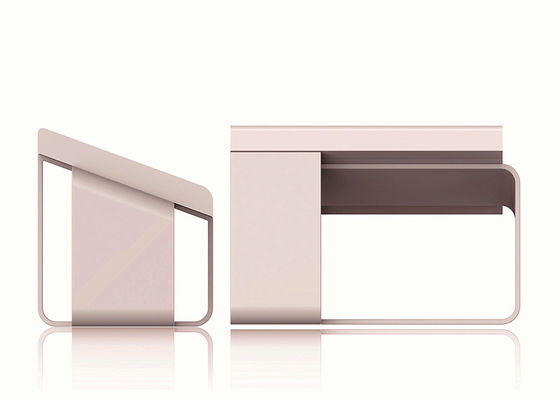

| Product Name: | Touch Screen Advertising Kiosk | Panel Type: | TFT-LCD |
|---|---|---|---|
| Warranty Period: | One Year Of Repair Coverage & Lifetime Complimentary Support (2~3 Year Warranty Is Optional) | Color: | Silver/Black/White/Red/Golden Or Other Custom Color |
| Viewing Angle: | 178 /178 | Contrast Ratio: | 1500:1~5000:1 |
| APP Applications: | Google Map, App Market,Email, Etc | Packaging Details: | Packed With Strong EPE And Carton Box, Wooden Box |
| High Light: | all in one kiosk,shopping mall kiosk |
||
Description
1, Adopt High-Strength Aluminium Alloy, Hardened Coat Painting Metal, 6mm thickness Anti-Vanal High Tempered Glass,antistatic,preventing magnetic strong interference.
2, With USB update feature; support functions between the card and card copying files (such as CF card to SD card,or SD to CF card etc.); support U-copy, conveniently and quickly updating target content, more details please refer to user manual.
3, Playing advertising program automatically and circular; support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX (5.0/6.0).
4, Automatically turn up or down the volume of ad media player after finished the period of time setup to machine according to your requirements.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
5, with scrolling marquee and angle icon display for any interval and segment quantity.
6, Automatic restart and shutdown periodically.
| For Kiosk Machine,we have two configuration options: | ||
| Configuration 1: Android OS with Cable Network & WIFI network version | ||
| After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support (2~3 yearwarranty is optional) |
| Certificate& Green Management | CE | Yes |
| RoHS | Yes | |
| Packaging Recyclability | All Packing material are recyclable | |
| Parameter Chart of Android OS with Cable Network & WIFI network version | ||
| Main Specification | Function Version | Android Operating System with Wifi Network+Cable Network and ,LG A+ grade IPS panel and anti-vandal fully-temperred glass protection, Full HD 1920*1080(Ultra HD 3840*2160 4K is optional), wooden box packing, with CMS remote control |
| Display Size | 55"(43"/49"/50"/55"/65"/75"/84" Optional) | |
| Packing Material | Carton Box&EPE Inside, Wooden Box Packing Outside (Aluminium Box Is Optional) | |
| Power Supply | Wide range power input:110-240V/50HZ/60HZ workable in every country all around the world | |
| Power Comsuption | 98W | |
| Enclosure Material | Frame: High-strength Aluminium Alloy Frame Front : Fully High-tempered Glass | |
| Rear:Coat Painting Strong Steel | ||
| Color | Frame: Silver Oil Painting Front : Black anti-vandal fully-tempered glass protection | |
| Rear: Coat Painting Strong Steel Black | ||
| Dimensions | Mainbody 1860*800*35mm Base: 800*620*50mm | |
| Gross weight | Mainbody:65KGS Base:10KGS | |
| Dimensions after packed with Veneer Wooden Box | Mainbody 1950*1030*220mm Base: 860*700*100mm | |
| Gross weight after packed with Veneer Wooden Box | Mainbody:90KGS Base:13KGS | |
| Operating temperature | -20 ~85℃ | |
| Certificate | CE/ROHS/CB/FCC/GS/SASO/SAA/WEEE | |
| Mainboard Specification | Mainboard | Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
| Operating System | Android OS 4.4(Android 5/6/7 is optional) | |
| CPU | Britain Cortex A53 Quad-core ,64bit;( Octa-core is optional) | |
| GPU | GPU: Mali 450 6-core 64bit | |
| RAM | LPDDR3 4G(8G/16G/64G is optional) | |
| Storage | EMMC 8G Byte (16G/64G is optional) | |
| Cable Network Connectivity | YES | |
| WIFI connectivity | YES | |
| 3G/4G/5G Network Connectivity | Optional | |
| Bluetooth | N/A | |
| In/Out Interface | 1xUSB 3.0 , copy speed reach to 16M/S; 1xHDMI 2.0 support 4K input; 1xRJ45 Cable Network port | |
| Speaker Power | 2×10W (8Ω) | |
| Color system | PAL/NTSC/SECAM | |
| Video Format | MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1(VCD:DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM, RMVB,MKV,DIVX,ASF,FLV,...etc. support all of the format of video | |
| Audio Format | MP3..etc. all of the format of audio | |
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |
| OSD Display Language |
English/Русский/France/Español/Italian/Português/Japanese/Korean/Hebrew... any all other language |
|
| Operating System Language | English/Русский/France/Español/Italian/ Português / Japanese/ Korean/ Hebrew ... any all other language | |
| Touch Screen Specification | Touch Point | SoftTouch sensitive Real 10 touch points (20 touch points is optional) |
| Touch Type | Latest Version Infrared Ray Touch (20 touch points Capacititve Touch is optional) | |
| Touch Sensibility: | <2mm | |
| Response Time | 2ms | |
| Scanning Rate | 50 scans/s | |
| Available object size for touch | <2mm | |
| Transparency of Tempered protecting glass | >95﹪ | |
| Durability of Touch | No limited | |
| Surface hardness of Touch screen | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | |
| Display Specification | Display Brand | LG / SAMSUNG Original A+Grade IPS panel, without any light spot or black spot and 178/178Full Viewing Angle |
| Max Resolution | Full HD 1920*1080 (4K Ultra-HD 3840*2160 is available) | |
| Display color | 16.7 Millinium | |
| Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |
| Brightness (nits) | 250~400cd/m2 | |
| Contrast | 1500:1 | |
| Visual angle | Full View 178/178 degreee | |
| Response time | 3~5ms | |
| Life(hrs) | >70,000(hrs) | |
| CMS( Content Management Software) function detail | We offer free-of-charge CMS( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet(Cable Network/Wirelss/3G network/4G network/5G network) doing control like upload/delete advertising content, changing schedule,split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image,weather, date, time, news broadcast, webpage, daily/monthly/yearly schedule.... | |
| Automatical and cycle paly when power is on;After power is off, the machine will continue to play the advertising content from where it is intermitted due to power-off | ||
| Support playing content update via WIFI/CABLE/3G network | ||
| Support picture-in-picture, and picture again music and slide show play. | ||
| Capable of setting scrolling caption and Logo on the screen. | ||
| Built-in clock and calendar function, you can choose it show on the screen | ||
| Support file and OSD vertical or horizontal playing type | ||
|
Support 5 groups of automatic power on/off timer, and Daily and Weekly power on/off timer can be set |
||
| Support multi-language; English, Chinese.. etc. | ||
| Support photo+Music, photo+video,photo+photo,music+video…all of the | ||
| combination of photo,audio, video are available. | ||
| Support all of the combination of photo,audio, video single repeat, or not repeat.. | ||
| Support rotating manu 90/180/270 degree | ||
| You can set split-screen---1 to 50 sections for broadcasting video,audio and photo, free to set the sections. | ||
| Configuration 2 : Windows wifi network | ||
| After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support (2~3 year warranty is optional) |
| Certificate& Green Management | CE | Yes |
| RoHS | Yes | |
| Packaging Recyclability | All Packing material are recyclable | |
| Parameter Chart for Windows wifi network | ||
| Main Specification | Function Version | PC Built-in Windows Operating System with Sensitive Infrared Ray Touch and Cable Network+WIFI Network,LG A+ grade IPS panel and anti-vandal fully-tempered glass protection, Full HD 1920*1080 2K with Wooden Box Packing |
| Panel Size | 55"(43"/49"/50"/55"/65"/75"/84" Optional) | |
| Packing Material | Carton Box&EPE Inside,Wooden Box Packing Outside (Aluminium Box Is Optional) | |
| Enclosure Material | High-strength Aluminium Alloy Frame,Fully High-temperred Glass,Coat Painting Strong Steel | |
| Dimension | Mainbody:1930*766*55mm Base: 766*460*50mm | |
| Colors | Frame: Silver Oil Painting Front : Black anti-vandal fully-temperred glass protection | |
| Back: Coat Painting Strong Steel Black | ||
| Input Power | 110-240V/50HZ/60HZ wide range for every country | |
| Power Comsuption | 138W( deponds on different function and size) | |
| Operating temperature | -20 ~85℃ | |
| Certificate | CE/ROHS/CB/FCC/GS/SASO/SAA/WEEE | |
| Mainboard Specification | Motherboard | Intel™ Chipset ;Industrial High Class Micro ATX Form Factor; All Solid Capacitor design; High Density Glass Fabric PCB ; Support Intel™ Rapid Start Technology and Smart Connect Technology,10 layer gold-coating Mother board. |
| CPU | Intel™ J1900 2.0Ghz(Maximum 2.4G) with integrated Graphics Visuals; (Intel™ i3/i5/i7/i9 is optional) | |
| Operating System | Windows 7/Windows 10 | |
| In/Out Interface Port | 2xUSB3.0,2xUSB2.0,1xHDMI,1xRJ45 Cable Network Port,1xVGA,Audio output, Microphone input | |
| RAM | Brand new Kingston™ or ADATA™ Dual Channel DDR3-1600 Memory Technology 4G (8G/16G is optional) | |
| ROM(Memory) | ADATA™/Kingston™ /Micron/Sandisk/Kingspeed High Speed Solid State Disk 60/64G(128G/256G/1TB is optional) | |
| WIFI Network | Included Embedded (Realtek 8111E ) | |
| 3G/4G/5G Network Connectivity | Optional | |
| Speaker | High Quality HD | |
| Speaker Power | 2×10W (8Ω) | |
| Color system | PAL/NTSC/SECAM | |
| Video Format | MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2),MPEG1(VCD:DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS, RM,RMVB,MKV, DIVX,ASF,FLV ,...etc. support all of the format of video | |
| Audio Format | MP3..etc. all of the format of audio | |
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |
| OSD Panel Language | English/усский/France/Español/Italian/Português/ Japanese/Korean/Hebrew... any all other language | |
| Touch Screen Specification | Touch Point | SoftTouch sensitive Real 10 touch points (20 touch points is optional) |
| Touch Type | Latest Version Infrared Ray Touch (20 touch points Capacititve Touch is optional) | |
| Touch Sensibility: | <2mm | |
| Response Time | 2ms | |
| Scanning Rate | 50 scans/s | |
| Available object size for touch | <2mm | |
| Transparency of Tempered protecting glass | >95﹪ | |
| Durability of Touch | No limited | |
| Surface hardness of Touch screen | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | |
| Panel Specification | Panel Brand | LG / SAMSUNG Original A+Grade IPS panel, without any light spot or black spot and Full Viewing Angle |
| Max Resolution | Full HD 1920*1080 (4K Ultra-HD 3840*2160 is available) | |
| Panel color | 16.7 Millinium | |
| Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |
| Brightness (nits) | 250~400cd/m2 | |
| Contrast | 1500:1 | |
| Visual angle | Full View 178/178 degreee | |
| Response time | 3~5ms | |
| Life(hrs) | >70,000(hrs) | |
| Accessories | Accessories | Qty |
| 1.User Manual | 1 | |
| 2.Warranty Card | 1 | |
| 3.Power Cord | 1 | |
| 4.Remote Controller | 1 | |
| 5.Security Door Key | 2 | |
| 6.WIFI antenna | 2 | |
| 7.Screw for Base | 10~12 | |
| 8.Screw Driver | 1 | |
