Product Details:
Payment & Shipping Terms:
|
Product Name: | Digital Signage Advertising | Size Of Panel: | 15'' 19",22",26", 32'',43'',47",49",50",55",65",75",82" |
---|---|---|---|
Design: | Fashion Design | Installation: | Floor Stand/Wall Mounted/Open Frame Are Optional |
Interface: | HDMI,VGA DVI-D, USB, AV, Microphone | Feature: | Automatic Restart Shutdown |
Touch Type: | Infrared Ray Touch & Capacitive Touch For Option | OSD Language: | Multi-language |
High Light: | conference room digital signage,multi screen digital signage |

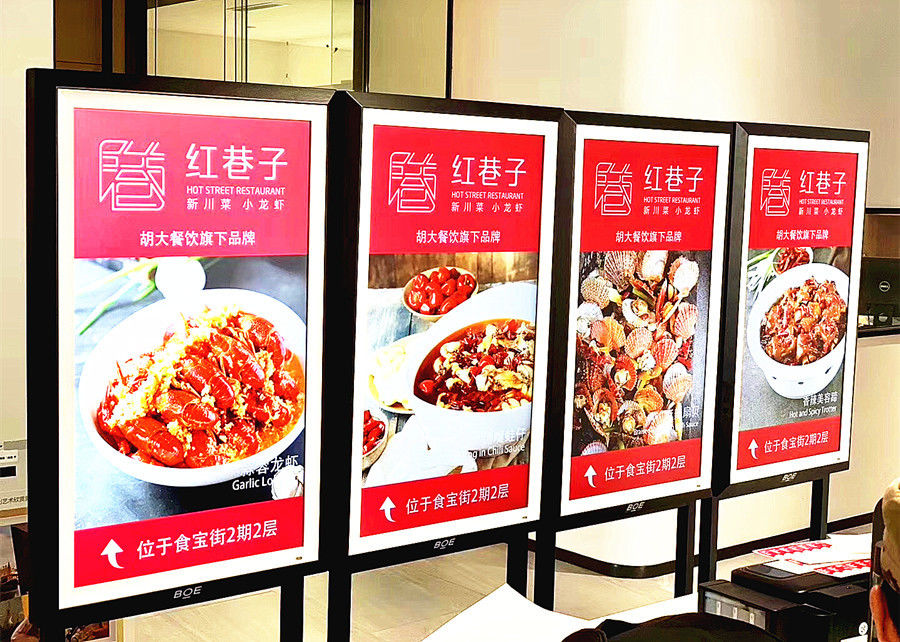

LCD Digital Signage Applications
funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
LCD Digital Signage Parameters
Configuration Type | Standalone U-disk auto-play (based on Android OS) |
Windows OS WIFI Cable Network |
|
After-Sale Service Term | Warranty Period |
One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional |
|
Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | |
Packaging Recyclability | All Packing material are recyclable | ||
Main Specification | Display Size | 15'', 17",19",22",26", 32'',43'',47",49",50",55",65",75",82" 85" | |
Packing Material | Veneer Wooden Box( Aluminium Box is optional) | ||
Power Comsuption | 20W~80W | ||
Power Supply |
Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world |
||
Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | ||
Operating temperature | -20 ~85ºC | ||
Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
|
Operating System | Android OS | Windows 8.1/10 | |
CPU | Dual-core | Windows version: i3/i5/i7/J1900 | |
GPU | Android version: GPU: Mali-T764 |
Windows version: Integrated in CPU HD4600 |
|
RAM | 1G/2G for option | Windows version: DDR3/DDR4 2G/4G/8G /16G for option | |
Storage | 4G/8G for option | Windows version:SSD 32G/64G/128G/562G/ 1TB for option | |
Cable Network Connectivity | N/A | YES | |
WIFI connectivity | N/A | YES | |
Bluetooth | N/A | Optional | |
In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input |
Windows version: 2xUSB3.0,2x USB2.0,1x HDMI,1x RJ45 Cable Network Port, 1xVGA , Audio output, Microphone input |
|
Unique Function | Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly |
It's powerful as computers like we daily use, can be with touch function or non-touch. |
|
Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | |
Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1(VCD:DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,.. .etc. support all of the format of video |
||
Audio Format | MP3..etc. all of the format of audio | ||
Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | ||
Operating System Language |
English/Русский/France/Español/Italian/Português/Japanese/Korean/Hebrew...any all other language |
||
Touch Screen Specification (Touch Screen is optional) |
Touch Point | N/A | SoftTouch sensitive Real 10 points Mult-touch |
Touch Type | N/A | Latest Version Infrared Ray SoftTouch | |
Touch Sensibility: | N/A | <3~5mm | |
Response Time | N/A | <2ms | |
Scanning Rate | N/A | 50 scans/s | |
Available object size for touch | N/A | <2mm | |
Transparency of Tempered protecting glass | N/A | >95% | |
Durability of Touch | N/A | No limited | |
Surface hardness of Touch screen | N/A |
Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball |
|
Display Specification | Display Brand |
LG / SAMSUNG Original A+Grade display A + grade, without any light spot or black spot and Full Viewing Angle |
|
Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | ||
Display color | 16.7 Millinium | ||
Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | ||
Brightness (nits) | 600cd/m2 | ||
Contrast | 1500:1 | ||
Visual angle | Full View 178/178 degreee | ||
Response time | 3~5ms | ||
Life(hrs) | >70,000(hrs) | ||
Quantity of Accessories | Accessories | ||
1.User Manual | 1 | ||
2.Warranty Card | 1 | ||
3.Power Cord | 1 | ||
4.Remote Controller | 1 | N/A | |
5.Security Door Key | 2 | ||
6.WIFI antenna | N/A | 2 |
