Maystar Electronics and Electrical Industry Co.,Ltd
Big Idea Display You Future
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transparent OLED Display | Application: | Subway , Airports , Stations |
|---|---|---|---|
| View: | Dual View | Size: | Customized |
| Viewing Angle: | 178 / 178 | Power Consumption: | 20W~80W |
| Contrast Ratio: | 1500:1~5000:1 | Operation: | Android OS / Android OS 5.1/6.0/7.0 With Google Playstore / Windows 8.1/10 |
| High Light: | transparent oled touch screen,clear oled display |
||

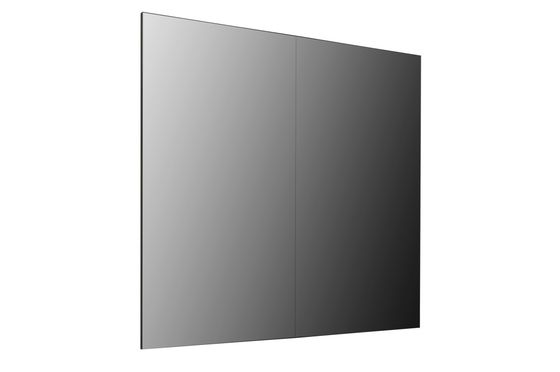

Dual View Transparent OLED Display For Subway , Airports , Stations
Transparent OLED Display Application
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
Transparent OLED Display Configuration:
| Configuration Type | Standalone U-disk auto play (based on Android OS) | Android OS with Cable Network & WIFI network version( Content Management Software is included) | |
| Unique Function | Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly |
We offer free-of-charge CMS ( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet (Cable Network/Wirelss/ 3G network/ 4G network/ 5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/ monthly/yearly schedule.... |
|
| After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional | |
| Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | |
| Packaging Recyclability | All Packing material are recyclable | ||
| Main Specification | Display Size | 55" | |
| Packing Material | Veneer Wooden Box( Aluminium Box is optional) | ||
| Power Comsuption | 20W~80W | ||
| Power Supply | Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world | ||
| Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | ||
| Operating temperature | -20 ~85ºC | ||
| Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
|
| Operating System | Android OS | Android OS 5.1/6.1/7.0 with Google Playstore | |
| CPU | Dual-core | Android version: Quad-core/Octa-core | |
| GPU | Android version: GPU: Mali-T764 | Android version: GPU: Mali-T764 GPU,supporting 4K resolution | |
| RAM | 1G/2G for option | Android version: LPDDR3 2G/4G/8G/16G for option | |
| Storage | 4G/8G for option | Android version: EMMC 8G/16G/32G/64G for option | |
| Cable Network Connectivity | N/A | YES | |
| WIFI connectivity | N/A | YES | |
| 3G/4G/5G Network Connectivity | N/A | Optional | |
| Bluetooth | N/A | Optional | |
| In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input | Android Version: 1xUSB 3.0 , copy speed reach to 16M/S;1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot | |
| Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | |
| Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,... etc. support all of the format of video |
||
| Audio Format | MP3..etc. all of the format of audio | ||
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | ||
| Operating System Language |
EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language |
||
| Touch Screen Specification (Touch Screen is optional) | Touch Point | N/A | SoftTouch sensitive Real 10 points Mult-touch |
| Touch Type | N/A | Latest Version Infrared Ray SoftTouch | |
| Touch Sensibility: | N/A | <3~5mm | |
| Response Time | N/A | <2ms | |
| Scanning Rate | N/A | 50 scans/s | |
| Available object size for touch | N/A | <2mm | |
| Transparency of Tempered protecting glass | N/A | >95% | |
| Durability of Touch | N/A | No limited | |
| Surface hardness of Touch screen | N/A | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | |
| Display Specification | Display Brand | LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle | |
| Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | ||
| Display color | 16.7 Millinium | ||
| Brightness (nits) | 600cd/m2 | ||
| Contrast | 1500:1 | ||
| Visual angle | Full View 178/178 degreee | ||
| Response time | 3~5ms | ||
| Life(hrs) | >70,000(hrs) | ||
| Accessories | Qty of Accessories | ||
| 1.User Manual | 1 | ||
| 2.Warranty Card | 1 | ||
| 3.Power Cord | 1 | ||
| 4.Remote Controller | 1 | ||
| 5.Security Door Key | 2 | ||
| 6.WIFI antenna | N/A | 2 | |
Details
About US
We currently has commercialized solutions that are being used throughout the world on a daily basis across a wide range of industries. Our passion for innovation leads us into new areas of discovery, ultimately arriving at improved solutions for everyone.
Our products are mainly exported to US,Canada,France,Germany,Italy,United Kingdom,Sweden,Switzerland, Brazil, Argentina, the Middle East,more than 80 countries and regions.Our products are widely used in schools,railway stations,hospitals,subways,shopping malls,offices buildings,buses,hotels and other public areas.Currently maintain close cooperative relations with a number of world-class display panel manufacturers like SAMSUNG, AUO, LG, CMO, SHARP, BOE.
Maystar is equipped with advanced production equipment imported from Japan AMADA CNC machine tools, cutting machines,bending machines,electrostatic powder paint equipment,and other major equipment. Current products cover a comprehensive line of digital signage/kiosk/all in one pc/lcd monitor/photo booth/advertising player/advertising player/advertising equipment/touch screen/monitor/touch panel/LCD wall/interactive kiosk/interactive board,ranging from 8 inch to 100 inch.
