Disposable Face Mask Manufacturing Machine / Face Mask Production Line

China Disposable Face Mask Manufacturing Machine / Face Mask Production Line supplier

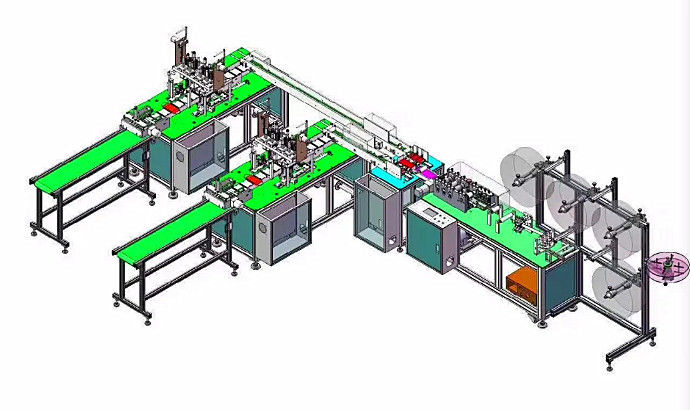

Large Image :  Disposable Face Mask Manufacturing Machine / Face Mask Production Line

Product Details:

Place of Origin: China
Certification: CE
Model Number: MM-L1

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Packing
Delivery Time: 30 - 45 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Contact Now
Detailed Product Description
Name: Face Mask Manufacturing Machine Power Input: 220V / 50Hz
Product Size: 175*95mm Warranty: 12 Months
Other Name: Face Mask Production Line Product Type: Mask, Mouth Cover
High Light:

face mask production line


face mask manufacturing machine

Disposable Face Mask Manufacturing Machine / Face Mask Production Line

Face Mask Manufacturing Machine Basic Info. :

Model NO:MM-L1
Speed :100~120 PCS/Min
Machine Type:Disposable Nonwoven Machinery
Power Input:220V / 50Hz
Product Size :175*95mm
Warranty :12 Months

Service : English Video Call Installation Training
Product Type : Mask, Mouth Cover
Usage : Hospital, Public
Weight :2300kg
Purpose: Making Disposable Face Mask
Driven Type : Electric
Air Pressure : 0.6MPa
Transport Package : Sea Worthy Wooden Cases
HS Code : 847780000

Face Mask Manufacturing Machine Raw Materials

1. Produce non woven face mask blank(body) automatically from raw material roll width 180-200mm, 10-20gsm;
2. Inserting nose wire, then forming, sealing and cutting---finished mask blank;
3. The size of mask blank is 175(L)*90(W)mm, other specifications according to customers;
4. 3 layers available.


Face Mask Manufacturing Machine Main Features:


  1. photoelectric detection of raw materials to avoid errors and reduce waste.
  2. It can produce one to four layers of mask body.
  3. The machine has the function of total count and batch count. The number of batch count can be set arbitrarily.
  4. Replacing the mold can produce masks of different sizes and styles.
  5. the whole machine adopts aluminum alloy structure, beautiful and sturdy.


Face Mask Manufacturing Machine parameters :


Control system power 1 Phase 220V / 50HZ
Air Pressure 0.6Mpa
Power supply 3Phase 380V 50HZ
servo motor Domestic quality
Control System PLC
sensor Omron, Seak
Pneumatic Components SMC Yadek
Operation screen 10 inch capacitive screen
Bearing NSK
Lead screw Hiwin
Security Safety light grid
Equipment structure 2 ply
equipment power 8.5KW
equipment weight about2.6T
Driven Ordinary motor + servo
Number of applicable layers 3-layer
Applicable materials PP, non-woven fabric, synthetic fiber
Processing methods Ultrasonic welding
Finished product specifications 175*95mm
Technical characteristics
1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed.
2. The production line adopts the structure of 2ply, with high production efficiency
3. Nose clips and ear loop are automatically cut and welded by ultrasound
4. Automatic counting and palletizing after welding earbands

Face Mask Manufacturing Machine Advantages :


  1. All electrical components of the equipment adopt international first-line brands to ensure the stability of the equipment to the greatest extent;
  2. Adopt first-line brand ultrasonic welding machine, with high welding efficiency, good quality, stable and durable;
  3. High-speed production with a production capacity of 100-110PSC per minute;
  4. Modular design, convenient installation and maintenance;
  5. Intelligent control, simple and convenient operation;

Price Term

1. Above price is quoted based on FOB Shenzhen China
2. Payment term: 30% down payment, the balance paid before delivery
3. Delivery time: Within 25 workdays after received 50% down payment
5. MARKING: Notice by buyer
6. PACKING: Wooden Pallet

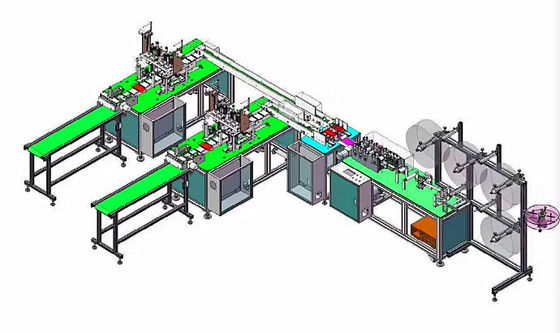

Face Mask Manufacturing Machine Details


Disposable Face Mask Manufacturing Machine / Face Mask Production Line
