Product Details:
Payment & Shipping Terms:
|
Product Name: | Large Touch Screen Monitor | Size Of Panel: | 15"~84" |
---|---|---|---|
Application: | Country Clubs | Resolution: | 1920*1080/3840*2160 For Option |
Panel Type: | TFT-LCD | Touch Type: | Infrared Ray Touch & Capacitive Touch & Nano Touch For Option |
Waterproof / Dustproof Protection Grade: | IP65 | Viewing Angle: | 178 /178 |
OSD Language: | Multi-language Support(English, French, German, Italian, Spanish,Arabic...) | APP Applications: | Google Map, App Market,Email, Etc |
Power Consumption: | 20W~100W For Different Configuration And Panel Size | ||
High Light: | lcd touch screen monitor,network touch screen monitor |

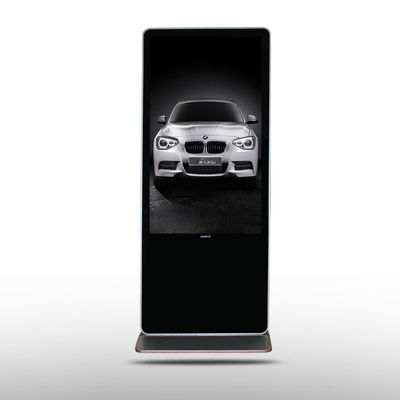

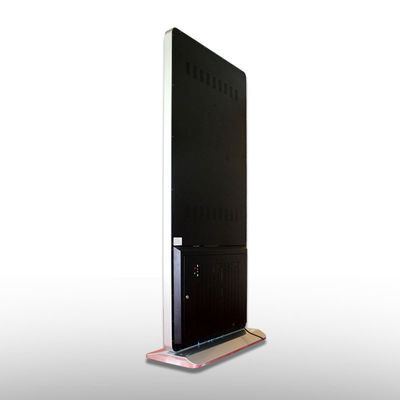

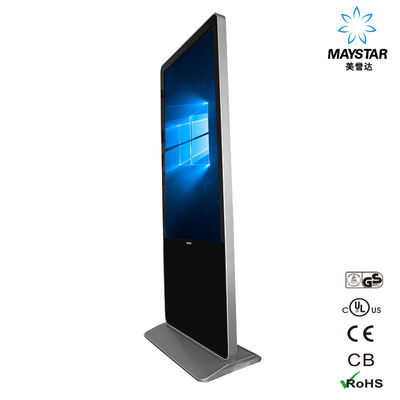

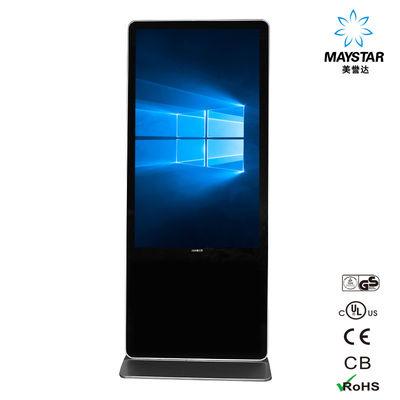

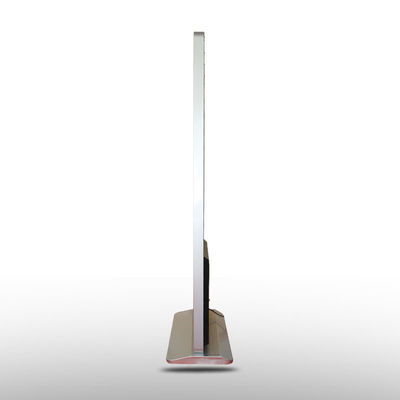

Custom Touch Screen Kiosk Monitor 15" ~ 84" Panel Size tft lcd display With OSD Language
Applications | |
Business Organizations | supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
Financial Organizations | Banks, negotiable securities, funds, insurance companies, pawnshops; |
Non-profit Organizations | Telecommunications, post offices, hospital, schools; |
Public Places | subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
Entertainments | Theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Description
1, Adopt High-Strength Aluminium Alloy, Hardened Coat Painting Metal, 6mm thickness Anti-Vanal High Tempered Glass,antistatic,preventing magnetic strong interference.
2, With 6mm thickness tempered glass as protection layer against the surface of LCD screen.
3, Support SD card or USB port at one player; it is optional for VGA Port, S-video port and HDMI port.Compatible all formats of high definition video signal and standard definition video signal input(HDMI,YPbPr,VGA,CVBS*2)and output(AV).
5, Safely locking system function to avoid flash memory card and advertising playing contents being taken away, also can be protected by password.
4, Playlists support functions, can set different folders, copy all target files to those different folders, system would default to play your target file one by one.
5, Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
6, with scrolling marquee and angle icon display for any interval and segment quantity.
7, Automatic restart and shutdown periodically.
8, Support playlist function and slides showing automatically.
9, Adopt an external power adapter to supply power,more safe and reliable.
10, Automatic recognize PAL/NTSC video display.
11, Support key operation and IR remote control.
12. Built in with camera, printer, scanner, keyboard, card payment.
For Touch Screen Kiosk monitor,we have two configuration options: |
||
Configuration 1: Android OS with Cable Network & WIFI network version | ||
After-Sale Service Term | Warranty Period |
One year of repair coverage & Lifetime complimentary support (2~3 year warranty is optional) |
Certificate& Green Management | CE | Yes |
RoHS | Yes | |
Packaging Recyclability | All Packing material are recyclable | |
Parameter Chart of Android OS with Cable Network & WIFI network version | ||
Main Specification | Function Version | Android Operating System with Wifi Network+Cable Network and ,LG A+ grade IPS panel and anti-vandal fully-temperred glass protection, Full HD 1920*1080(Ultra HD 3840*2160 4K is optional), wooden box packing, with CMS remote control |
Display Size | 55"(43"/49"/50"/55"/65"/75"/84" Optional) | |
Packing Material | Carton Box&EPE Inside, Wooden Box Packing Outside (Aluminium Box Is Optional) | |
Power Supply | Wide range power input:110-240V/50HZ/60HZ workable in every country all around the world | |
Power Comsuption | 66W | |
Enclosure Material | Frame: High-strength Aluminium Alloy Frame Front :Fully High-tempered Glass Rear:Coat Painting Strong Steel | |
Color | Frame: Silver Oil Painting Front : Black anti-vandal fully-tempered glass protection Rear: Coat Painting Strong Steel Black | |
Dimensions | Mainbody 1860*800*35mm Base: 800*620*50mm | |
Gross weight | Mainbody:65KGS Base:10KGS | |
Dimensions after packed with Veneer Wooden Box | Mainbody 1950*1030*220mm Base: 860*700*100mm | |
Gross weight after packed with Veneer Wooden Box | Mainbody:90KGS Base:13KGS | |
Operating temperature | -20 ~85℃ | |
Certificate | CE/ROHS/CB/FCC/GS/SASO/SAA/WEEE | |
Mainboard Specification | Mainboard | Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
Operating System | Android OS 4.4(Android 5/6/7 is optional) | |
CPU | Britain Cortex A53 Quad-core ,64bit;( Octa-core is optional) | |
GPU | GPU: Mali 450 6-core 64bit | |
RAM | LPDDR3 4G(8G/16G/64G is optional) | |
Storage | EMMC 8G Byte (16G/64G is optional) | |
Cable Network Connectivity | YES | |
WIFI connectivity | YES | |
3G/4G/5G Network Connectivity | Optional | |
Bluetooth | N/A | |
In/Out Interface | 1xUSB 3.0 , copy speed reach to 16M/S; 1xHDMI 2.0 support 4K input; 1xRJ45Cable Network port | |
Speaker Power | 2×10W (8Ω) | |
Color system | PAL/NTSC/SECAM | |
Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2),MPEG1(VCD:DAT/MPG1) ,WMV, MP3,MPG,TRP,TP,M2TS,TS,RM, RMVB,MKV,DIVX,ASF,FLV,...etc. support all of the format of video |
|
Audio Format | MP3..etc. all of the format of audio | |
Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |
OSD Display Language | English/Русский/France/Español /Italian/Português/ Japanese/ Korean/ Hebrew... any all other language | |
Operating System Language | English/Русский/France/Español/ Italian/Português/ Japanese/ Korean/ Hebrew... any all other language | |
Touch Screen Specification | Touch Point | SoftTouch sensitive Real 10 touch points (20 touch points is optional) |
Touch Type | Latest Version Infrared Ray Touch (20 touch points Capacititve Touch is optional) | |
Touch Sensibility: | <2mm | |
Response Time | <2ms | |
Scanning Rate | 50 scans/s | |
Available object size for touch | 2mm | |
Transparency of Tempered protecting glass | >97﹪ | |
Durability of Touch | No limited | |
Surface hardness of Touch screen | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | |
Display Specification | Display Brand | LG / SAMSUNG Original A+Grade IPS panel, without any light spot or black spot and 178/178Full Viewing Angle |
Max Resolution | Full HD 1920*1080 (4K Ultra-HD 3840*2160 is available) | |
Display color | 16.7 Millinium | |
Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |
Brightness (nits) | 250~400cd/m2 | |
Contrast | 1500:01:00 | |
Visual angle | Full View 178/178 degreee | |
Response time | 3~5ms | |
Life(hrs) | >70,000(hrs) | |
CMS( Content Management Software) function detail | We offer free-of-charge CMS( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet(Cable Network/Wirelss/3G network/4G network/5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image,weather, date, time, news broadcast, webpage, daily/monthly/yearly schedule.... | |
Automatical and cycle paly when power is on;After power is off, the machine will continue to play the advertising content from where it is intermitted due to power-off | ||
Support playing content update via WIFI/CABLE/3G network | ||
Support picture-in-picture, and picture again music and slide show play. | ||
Capable of setting scrolling caption and Logo on the screen. | ||
Built-in clock and calendar function, you can choose it show on the screen | ||
Support file and OSD vertical or horizontal playing type | ||
Support 5 groups of automatic power on/off timer, and Daily and Weekly power on/off timer can be set | ||
Support multi-language; English, Chinese.. etc. | ||
Support photo+Music, photo+video,photo+photo,music+video…all of the combination of photo,audio, video are available. |
||
Support all of the combination of photo,audio, video single repeat, or not repeat.. | ||
Support rotating manu 90/180/270 degree | ||
You can set split-screen---1 to 50 sections for broadcasting video,audio and photo,free to set the sections. | ||
Configuration 2 : Windows wifi network | ||
After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support (2~3 year warranty is optional) |
Certificate& Green Management | CE | Yes |
RoHS | Yes | |
Packaging Recyclability | All Packing material are recyclable | |
Parameter Chart for Windows wifi network | ||
Main Specification | Function Version | PC Built-in Windows Operating System with Sensitive Infrared Ray Touch and Cable Network+WIFI Network,LG A+ grade IPS panel and anti-vandal fully-tempered glass protection, Full HD 1920*1080 2K with Wooden Box Packing |
Panel Size | 55"(43"/49"/50"/55"/65"/75"/84" Optional) | |
Packing Material | Carton Box&EPE Inside,Wooden Box Packing Outside (Aluminium Box Is Optional) | |
Enclosure Material | High-strength Aluminium Alloy Frame,Fully High-temperred Glass,Coat Painting Strong Steel | |
Dimension | Mainbody:1930*766*55mm Base: 766*460*50mm | |
Colors | Frame: Silver Oil Painting Front : Black anti-vandal fully-temperred glass protection | |
Back: Coat Painting Strong Steel Black | ||
Input Power | 110-240V/50HZ/60HZ wide range for every country | |
Power Comsuption | 30~96W( deponds on different function and size) | |
Operating temperature | -20 ~85℃ | |
Certificate | CE/ROHS/CB/FCC/GS/SASO/SAA/WEEE | |
Mainboard Specification | Motherboard | Intel™ Chipset ;Industrial High Class Micro ATX Form Factor; All Solid Capacitor design; High Density Glass Fabric PCB ; Support Intel™ Rapid Start Technology and Smart Connect Technology,10 layer gold-coating Mother board. |
CPU | Intel™ J1900 2.0Ghz(Maximum 2.4G) with integrated Graphics Visuals; | |
(Intel™ i3/i5/i7/i9 is optional) | ||
Operating System | Windows 7/Windows 10 | |
In/Out Interface Port | 2xUSB3.0,2xUSB2.0,1xHDMI,1xRJ45 Cable Network Port,1xVGA,Audio output, Microphone input | |
RAM | Brand new Kingston™ or ADATA™ Dual Channel DDR3-1600 Memory Technology | |
4G (8G/16G is optional) | ||
ROM(Memory) | ADATA™/Kingston™ /Micron/Sandisk/Kingspeed High Speed Solid State Disk 60/64G(128G/256G/1TB is optional) | |
WIFI Network | Included Embedded (Realtek 8111E ) | |
3G/4G/5G Network Connectivity | Optional | |
Speaker | High Quality HD | |
Speaker Power | 2×10W (8Ω) | |
Color system | PAL/NTSC/SECAM | |
Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2),MPEG1 (VCD:DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS, RM,RMVB,MKV,DIVX,ASF,FLV,...etc. support all of the format of video |
|
Audio Format | MP3..etc. all of the format of audio | |
Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |
OSD Panel Language | Englishусский/France/Español/Italian/Português/Japanese/Korean/ Hebrew... any all other language | |
Touch Screen Specification | Touch Point | SoftTouch sensitive Real 10 touch points (20 touch points is optional) |
Touch Type | Latest Version Infrared Ray Touch (20 touch points Capacititve Touch is optional) | |
Touch Sensibility: | <2mm | |
Response Time | <2ms | |
Scanning Rate | 50 scans/s | |
Available object size for touch | 2mm | |
Transparency of Tempered protecting glass | >97﹪ | |
Durability of Touch | No limited | |
Surface hardness of Touch screen | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | |
Panel Specification | Panel Brand | LG / SAMSUNG Original A+Grade IPS panel, without any light spot or black spot and Full Viewing Angle |
Max Resolution | Full HD 1920*1080 (4K Ultra-HD 3840*2160 is available) | |
Panel color | 16.7 Millinium | |
Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |
Brightness (nits) | 250~400cd/m2 | |
Contrast | 1500:01:00 | |
Visual angle | Full View 178/178 degreee | |
Response time | 3~5ms | |
Life(hrs) | >70,000(hrs) | |
Accessories | Accessories | Qty |
1.User Manual | 1 | |
2.Warranty Card | 1 | |
3.Power Cord | 1 | |
4.Remote Controller | 1 | |
5.Security Door Key | 2 | |
6.WIFI antenna | 2 | |
7.Screw for Base | 10~12 | |
8.Screw Driver | 1 |
