Product Details:
Payment & Shipping Terms:
|
Product Name: | Digital Touch Screen Signage | Application: | Convention Centers |
---|---|---|---|
Touch Type: | Infrared Ray Touch & Capacitive Touch For Option | Color: | Silver/Black/White/Red/Golden Or Other Custom Color |
Input Power: | 110-240V/50HZ/60HZ | Viewing Angle: | 178 /178 |
Contrast Ratio: | 1500:1~5000:1 | APP Applications: | Google Map, App Market,Email, Etc |
High Light: | conference room digital signage,multi screen digital signage |

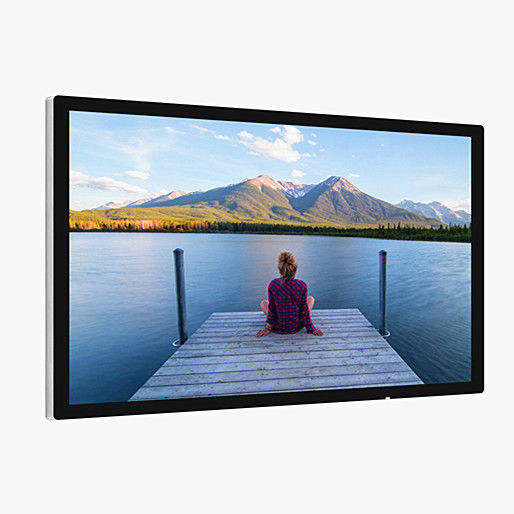

43" Wall Mounted LCD Digital Signage With 178 / 178 Viewing Angle
Description
1, Adopt newest A+ Grade TFT-LCD screen,with high contrast ration,high brightness,last longer and work better.
2, Support SD card or USB port at one player; it is optional for VGA Port, S-video port and HDMI port.Compatible all formats of high definition video signal and standard definition video signal input(HDMI,YPbPr,VGA,CVBS*2)and output(AV).
3, Safely locking system function to avoid flash memory card and advertising playing contents being taken away, also can be protected by password.
4,Support playlist function and slides showing automatically.
5, Adopt an external power adapter to supply power,more safe and reliable.
6, Automatic recognize PAL/NTSC video display.
7, Support key operation and IR remote control.
8, Physical resolution up to 1920*1080,compatible below resolution.automatically adjust to the best place
Maystar LCD Digital Signages are optional with 3 types of Configuration: | ||||
Configuration Type | Standalone U-disk auto-play (based on Android OS) |
Android OS with Cable Network & WIFI network version( Content Management Software is included) |
Windows OS WIFI Cable Network |
|
After-Sale Service Term | Warranty Period |
One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional |
||
Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | ||
Packaging Recyclability | All Packing material are recyclable | |||
Main Specification | Display Size | 15'', 17",19",22",26", 32'',43'',47",49",50",55",65",75",82" 85" | ||
Packing Material | Veneer Wooden Box( Aluminium Box is optional) | |||
Power Comsuption | 20W~80W | |||
Power Supply |
Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world |
|||
Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | |||
Operating temperature | -20 ~85ºC | |||
Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
||
Operating System | Android OS |
Android OS 5.1/6.0/7.0 with Google Playstore |
Windows 8.1/10 | |
CPU | Dual-core |
Android version: Quad-core/ Octa-core |
Windows version: i3/i5/i7/J1900 | |
GPU | Android version: GPU: Mali-T764 | Android version: GPU: Mali-T764 GPU,supporting 4K resolution |
Windows version: Integrated in CPU HD4600 |
|
RAM | 1G/2G for option |
Android version: LPDDR3 2G/4G/8G/16G for option |
Windows version: DDR3/DDR4 2G/4G/8G /16G for option | |
Storage | 4G/8G for option |
Android version: EMMC 8G/16G/32G/64G for option |
Windows version:SSD 32G/64G/128G/562G/ 1TB for option | |
Cable Network Connectivity | N/A | YES | YES | |
WIFI connectivity | N/A | YES | YES | |
3G/4G/5G Network Connectivity | N/A | Optional | Optional | |
Bluetooth | N/A | Optional | Optional | |
In/Out Interface | 2xUSB USB or 2xUSB,1xHDMI input |
Android Version: 1xUSB 3.0 , copyspeed reach to 16M/S; 1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot |
Windows version: 2xUSB3.0,2x USB2.0,1x HDMI,1x RJ45 Cable Network Port, 1xVGA , Audio output, Microphone input |
|
Unique Function | Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly |
We offer free-of-charge CMS( Content Management Software), with which you will be able to access to all ofmachines with one personal computer via Internet(Cable Network/ Wirelss/3G network / 4G network/5G network) doing control like upload/ delete advertising content, changing schedule,split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image,weather, date, time, news broadcast, webpage, daily/monthly/yearly schedule.... |
It's powerful as computers like we daily use, can be with touch function or non-touch. |
|
Speaker Power | 2×6W (8Ω) | 2×8W (8Ω) | 2×8W (8Ω) | |
Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1(VCD:DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,.. .etc. support all of the format of video |
|||
Audio Format | MP3..etc. all of the format of audio | |||
Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | |||
Operating System Language |
English/Русский/France/Español/Italian/Português/Japanese/Korean/Hebrew...any all other language |
|||
Touch Screen Specification (Touch Screen is optional) |
Touch Point | N/A | SoftTouch sensitive Real 10 points Mult-touch | |
Touch Type | N/A | Latest Version Infrared Ray SoftTouch | ||
Touch Sensibility: | N/A | <3~5mm | ||
Response Time | N/A | <2ms | ||
Scanning Rate | N/A | 50 scans/s | ||
Available object size for touch | N/A | <2mm | ||
Transparency of Tempered protecting glass | N/A | >95% | ||
Durability of Touch | N/A | No limited | ||
Surface hardness of Touch screen | N/A |
Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball |
||
Display Specification | Display Brand |
LG / SAMSUNG Original A+Grade display A + grade, without any light spot or black spot and Full Viewing Angle |
||
Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | |||
Display color | 16.7 Millinium | |||
Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |||
Brightness (nits) | 600cd/m2 | |||
Contrast | 1500:1 | |||
Visual angle | Full View 178/178 degreee | |||
Response time | 3~5ms | |||
Life(hrs) | >70,000(hrs) | |||
Quantity of Accessories | Accessories | |||
1.User Manual | 1 | |||
2.Warranty Card | 1 | |||
3.Power Cord | 1 | |||
4.Remote Controller | 1 | N/A | ||
5.Security Door Key | 2 | |||
6.WIFI antenna | N/A | 2 |
