Product Details:
Payment & Shipping Terms:
|
| Machine Type: | N95 Face Mask Making Machine | Feature: | Easy To Operate |
|---|---|---|---|
| Speed : | 100~120 PCS/Min | Power: | 220V / 50Hz |
| Welding: | Ear Loop Welding | Products: | Anti Pollution N95 Face Mask |
| High Light: | face mask maker machine,face mask manufacturing machine |
||

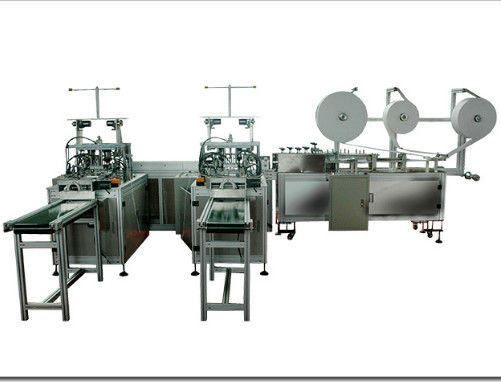

Anti Pollution N95 Face Mask Making Machine Ear-Loop Welding , Edge Wrapping
N95 Face Mask Making Machine Description
We know that the medical mask is composed of the mask body and ear band, the traditional medical mask machine is made of a machine that produces the mask body, which is then welded by the inner/outer ear loop welding machine. In order to realize the perfect cooperation between the machine and the automatic weld ear loop, also achieve maximum efficiency of the production line, we need to link one mask blank machine and one ear loop welding machine work together.
N95 Face Mask Making Machine Basic Info. :
Power Input:220V / 50Hz
Product Size :175*95mm
Warranty :12 Months
Service : English Video Call Installation Training
Product Type : Mask, Mouth Cover
Usage : Hospital, Public
Weight :2300kg
Purpose: Making Disposable Face Mask
Transport Package : Sea Worthy Wooden Cases
N95 Face Mask Making Machine parameters :
| Control system power | 1 Phase 220V / 50HZ |
| Air Pressure | 0.6Mpa |
| Power supply | 3Phase 380V 50HZ |
| Control System | PLC |
| sensor | Omron, Seak |
| Pneumatic Components | SMC Yadek |
| Operation screen | 10 inch capacitive screen |
| Bearing | NSK |
| Lead screw | Hiwin |
| Security | Safety light grid |
| Equipment structure | 2 ply |
| equipment power | 8.5KW |
| equipment weight | about2.6T |
| Driven | Ordinary motor + servo |
| Number of applicable layers | 3-layer |
| Applicable materials | PP, non-woven fabric, synthetic fiber |
| Processing methods | Ultrasonic welding |
| Finished product specifications | 175*95mm |
| Technical characteristics | |
| 1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed. 2. The production line adopts the structure of 2ply, with high production efficiency 3. Nose clips and ear loop are automatically cut and welded by ultrasound 4. Automatic counting and palletizing after welding earbands | |
N95 Face Mask Making Machine Details
