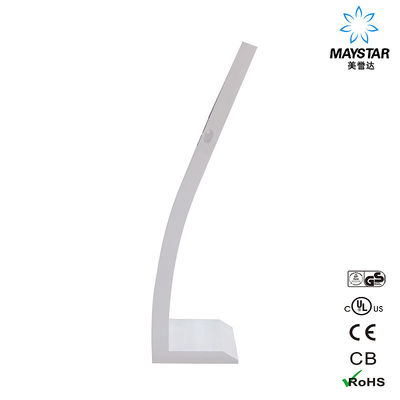

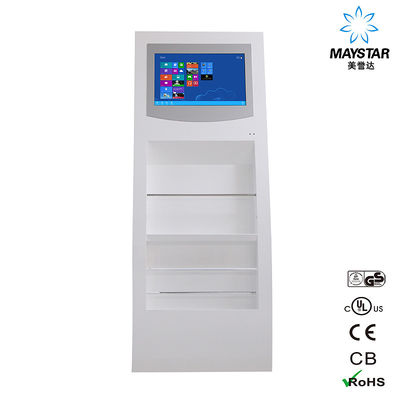

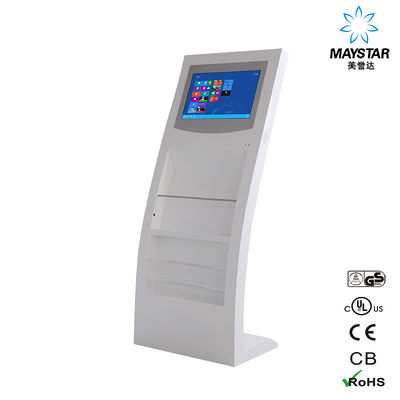

1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update

Certification
Good quality Outdoor Touch Screen Kiosk for sales
Good quality Outdoor Touch Screen Kiosk for sales
I'm Online Chat Now

1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update

China 1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update supplier
1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update supplier 1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update supplier 1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update supplier

Large Image :  1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update

Product Details:

Place of Origin: China
Brand Name: Maystar/KarmerMarker/Megapack
Certification: CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS
Model Number: MS-F65CT-XF2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed with Strong EPE and Carton Box, Wooden Box
Delivery Time: 7~15 days
Payment Terms: TT/LC/Paypal/Western Union
Supply Ability: 3000 units
Contact Now
Detailed Product Description
Product Name: Touch Screen Display Kiosk Size Of Panel: 15"~84"
Brightness: 300~400nits Application: Indoor, Bookstores, Parks, Exhibition Halls
Resolution: 1920*1080/3840*2160 For Option Installation: Floor Stand/Wall Mounted/Open Frame Are Optional
Operating System: Windows 7/8.1/10/Android/Linux Enclosure Material: High-Strength Aluminium Alloy, Hardened Coat Painting Metal, 6mm Thickness Anti-Vanal High Tempered Glass
High Light:

touch screen advertising kiosk

,

lcd touch screen kiosk



1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update



Description

1, With USB update feature; support functions between the card and card copying files (such as CF card to SD card,or SD to CF card etc.); support U-copy, conveniently and quickly updating target content, more details please refer to user manual.

2, Playing advertising program automatically and circular; support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX (5.0/6.0).

3, Playlists support functions, can set different folders, copy all target files to those different folders, system would default to play your target file one by one.

4, Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.

5, with scrolling marquee and angle icon display for any interval and segment quantity.

6, Automatic restart and shutdown periodically.

7, Support playlist function and slides showing automatically.



Applications

Financial Organizations : Banks, negotiable securities, funds, insurance companies, pawnshops;Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments : Theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course



For Touch Screen Kiosk,we have two configuration options:

Configuration 1: Android wifi network
After-Sale Service Term Warranty Period

One year of repair coverage & Lifetime complimentary support (2~3 year warranty

is optional)

Certificate& Green Management CE Yes
RoHS Yes
Packaging Recyclability All Packing material are recyclable
Parameter Chart for Android wifi network
Main Specification Function Version

Android Operating System with Wifi Network+Cable Network and ,LG A+ grade IPS

panel and anti-vandal fully-temperred glass protection, Full HD 1920*1080(Ultra HD

3840*2160 4K is optional), wooden box packing, with CMS remote control

Display Size 55"(43"/49"/50"/55"/65"/75"/84" Optional)
Packing Material Carton Box&EPE Inside, Wooden Box Packing Outside (Aluminium Box Is Optional)
Power Supply

Wide range power input:110-240V/50HZ/60HZ workable in every country all around

the world

Power Comsuption 98W
Enclosure Material

Frame: High-strength Aluminium Alloy Frame Front : Fully High-tempered Glass

Rear:Coat Painting Strong Steel

Color

Frame: Silver Oil Painting Front : Black anti-vandal fully-tempered glass protection

Rear: Coat Painting Strong Steel Black

Dimensions Mainbody 1860*800*35mm Base: 800*620*50mm
Gross weight Mainbody:65KGS Base:10KGS
Dimensions after packed with Veneer Wooden Box Mainbody 1950*1030*220mm Base: 860*700*100mm
Gross weight after packed with Veneer Wooden Box Mainbody:90KGS Base:13KGS
Operating temperature -20 ~85℃
Certificate CE/ROHS/CB/FCC/GS/SASO/SAA/WEEE
Mainboard Specification Mainboard

Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid

Capacitor design ; High Density Glass Fabric PCB

Operating System Android OS 4.4(Android 5/6/7 is optional)
CPU Britain Cortex A53 Quad-core ,64bit;( Octa-core is optional)
GPU GPU: Mali 450 6-core 64bit
RAM LPDDR3 4G(8G/16G/64G is optional)
Storage EMMC 8G Byte (16G/64G is optional)
Cable Network Connectivity YES
WIFI connectivity YES
4G Network Connectivity Optional
Bluetooth N/A
In/Out Interface

1xUSB 3.0 , copy speed reach to 16M/S; 1xHDMI 2.0 support 4K input; 1xRJ45

Cable Network port

Speaker Power 2×10W (8Ω)
Color system PAL/NTSC/SECAM
Video Format

MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2),MPEG1(VCD:DAT/MPG1),WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,

RMVB,MKV,DIVX,ASF,FLV,...etc. support all of the format of video

Audio Format MP3..etc. all of the format of audio
Image Format JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image
OSD Display Language

English/Русский/France/Español/Italian/Português/Japanese/Korean/Hebrew...

any all other language

Operating System Language

English/Русский/France/Español/Italian/Português/Japanese/Korean/Hebrew...

any all other language

Touch Screen Specification Touch Point SoftTouch sensitive Real 10 touch points (20 touch points is optional)
Touch Type Latest Version Infrared Ray Touch (20 touch points Capacititve Touch is optional)
Touch Sensibility: <3mm
Response Time 3ms
Scanning Rate 50 scans/s
Available object size for touch 3mm
Transparency of Tempered protecting glass >97﹪
Durability of Touch No limited
Surface hardness of Touch screen Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball
Display Specification Display Brand

LG / SAMSUNG Original A+Grade IPS panel, without any light spot or black spot

and 178/178Full Viewing Angle

Max Resolution Full HD 1920*1080 (4K Ultra-HD 3840*2160 is available)
Display color 16.7 Millinium
Pixel Pitch(mm) 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V)
Brightness (nits) 250~400cd/m2
Contrast 1500:1
Visual angle Full View 178/178 degreee
Response time 3~5ms
Life(hrs) >70,000(hrs)
CMS( Content Management Software) function detail

We offer free-of-charge CMS( Content Management Software), with which you will be able to access to all of
machines with one personal computer via Internet(Cable Network/Wirelss/3G network/4G network/5G network) doing control like upload/delete advertising content, changing schedule,split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image,weather, date, time, news broadcast, webpage, daily/monthly/yearly schedule....

Automatical and cycle paly when power is on;After power is off, the machine will continue to play the advertising content from where it is intermitted due to power-off

Support playing content update via WIFI/CABLE/3G network
Support picture-in-picture, and picture again music and slide show play.
Capable of setting scrolling caption and Logo on the screen.
Built-in clock and calendar function, you can choose it show on the screen
Support file and OSD vertical or horizontal playing type

Support 5 groups of automatic power on/off timer, and Daily and Weekly power

on/off timer can be set

Support multi-language; English, Chinese.. etc.

Support photo+Music, photo+video,photo+photo,music+video…all of the

combination of photo,audio, video are available.

Support all of the combination of photo,audio, video single repeat, or not repeat..
Support rotating manu 90/180/270 degree

You can set split-screen---1 to 50 sections for broadcasting video,audio and photo,free to set the sections.


Configuration 2: Windows wifi network
After-Sale Service Term Warranty Period

One year of repair coverage & Lifetime complimentary support (2~3 year warranty

is optional)

Certificate& Green Management CE Yes
RoHS Yes
Packaging Recyclability All Packing material are recyclable
Parameter Chart for Windows wifi network
Main Specification Function Version

PC Built-in Windows Operating System with Sensitive Infrared Ray Touch and Cable Network+WIFI Network,LG A+ grade IPS panel and anti-vandal fully-tempered glass protection, Full HD 1920*1080 2K with Wooden Box Packing

Panel Size 55"(43"/49"/50"/55"/65"/75"/84" Optional)
Packing Material Carton Box&EPE Inside,Wooden Box Packing Outside (Aluminium Box Is Optional)
Enclosure Material

High-strength Aluminium Alloy Frame,Fully High-temperred Glass,Coat Painting Strong Steel

Dimension Mainbody:1930*766*55mm Base: 766*460*50mm
Colors

Frame: Silver Oil Painting Front : Black anti-vandal fully-temperred glass protection Back: Coat Painting Strong Steel Black

Input Power 110-240V/50HZ/60HZ wide range for every country
Power Comsuption 138W( deponds on different function and size)
Operating temperature -20 ~85℃
Certificate CE/ROHS/CB/FCC/GS/SASO/SAA/WEEE
Mainboard Specification Motherboard

Intel™ Chipset ;Industrial High Class Micro ATX Form Factor; All Solid Capacitor design; High Density Glass Fabric PCB ; Support Intel™ Rapid Start Technology and Smart Connect Technology,10 layer gold-coating Mother board.

CPU

Intel™ J1900 2.0Ghz(Maximum 2.4G) with integrated Graphics Visuals;

(Intel™ i3/i5/i7/i9 is optional)

Operating System Windows 7/Windows 10
In/Out Interface Port

2xUSB3.0,2xUSB2.0,1xHDMI,1xRJ45 Cable Network Port,1xVGA,Audio output,Microphone input

RAM

Brand new Kingston™ or ADATA™ Dual Channel DDR3-1600 Memory Technology 4G (8G/16G is optional)

ROM(Memory)

ADATA™/Kingston™ /Micron/Sandisk/Kingspeed High Speed Solid State Disk

60/64G(128G/256G/1TB is optional)

WIFI Network Included Embedded (Realtek 8111E )
3G/4G Network Optional
Speaker High Quality HD
Speaker Power 2×10W (8Ω)
Color system PAL/NTSC/SECAM
Video Format

MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2),MPEG1(VCD:DAT/MPG1),

WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,...etc. support all of the format of video

Audio Format MP3..etc. all of the format of audio
Image Format JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image
OSD Panel Language

English/усский/France/Español/Italian/Português/Japanese/Korean/Hebrew...

any all other language

Touch Screen Specification Touch Point SoftTouch sensitive Real 10 touch points (20 touch points is optional)
Touch Type Latest Version Infrared Ray Touch (20 touch points Capacititve Touch is optional)
Touch Sensibility: <3mm
Response Time 3ms
Scanning Rate 50 scans/s
Available object size for touch 3mm
Transparency of Tempered protecting glass >97﹪
Durability of Touch No limited
Surface hardness of Touch screen Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball
Panel Specification Panel Brand LG / SAMSUNG Original A+Grade IPS panel, without any light spot or black spot and Full Viewing Angle
Max Resolution Full HD 1920*1080 (4K Ultra-HD 3840*2160 is available)
Panel color 16.7 Millinium
Pixel Pitch(mm) 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V)
Brightness (nits) 250~400cd/m2
Contrast 1500:1
Visual angle Full View 178/178 degreee
Response time 3~5ms
Life(hrs) >70,000(hrs)

Accessories Accessories Qty
1.User Manual 1
2.Warranty Card 1
3.Power Cord 1
4.Remote Controller 1
5.Security Door Key 2
6.WIFI antenna 2
7.Screw for Base 10~12
8.Screw Driver 1



1080P Full HD Touch Screen Advertising Kiosk , LCD Touch Screen Kiosk Support USB Update
