Payment & Shipping Terms:
|Product Name:||Transparent LED Display||Size Of Panel:||Custom Design|
|Pixel Density:||1024px/㎡||Panel Type:||LED|
|Installation:||Hangling Or Staching||Enclosure Material:||Aluminium Alloy|
|Enclosure Color:||Silver/Black/White/Red/Golden Or Other Custom Color||Custom Service:||Custom Accepted|
|Warranty Period:||One Year Of Repair Coverage & Lifetime Complimentary Support (2~3 Year Warranty Is Optional)||Viewing Angle:||Horizontal : 120°～120°, Vertical : 120°～120°|
|Contrast Ratio:||1500:1~5000:1||OSD Language:||Multi-language Support|
|Packaging Details:||Packed With Strong EPE And Carton Box, Wooden Box|
transparent glass led screen,
see through led screen
Maystar MS7 Transparent LED Display Enclosure Color Custom No Steel Frame Construction
Advantage of Transparent LED Display :
1. High transparency : Up to 80% transparency , with PC protection, won’t affect the building lighting itself.
2. No steel frame construction, Ultra slim & light weight : Individually remove and replaceable, improves the installation efficiency
3. Fanless Design & Convenient maintenance : Working in noiseless condition and energy-saving.

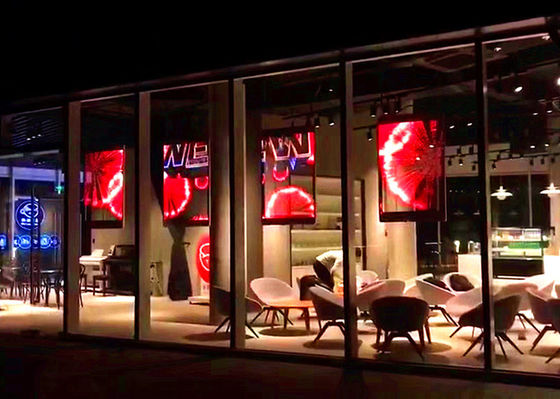

Transparent LED Display is a innovative technology allowing you to turn your window into a digital billboard, suitable for advertising all products and services. The integrated LED lamps are almost invisible from the outside of the building, thus making no difference to its appearance. This type of digital signage provides up to 80% transparency which enables you to still be able to look through the glass window.
1. It has a very high perspective and has a permeability of 60% to 95%, which ensures the lighting requirements and viewing angle range of the lighting structure between floors, glass facades and windows, and ensures the original lighting perspective function of the glass curtain wall. The screen body thickness is only 8cm, and the display screen body generally weighs only 15Kg/m2.
2. No steel frame construction, save a lot of installation and maintenance costs. Directly fixed on the glass curtain wall.Unique display effect: because the display background is transparent, the advertisement picture can be suspended on the glass curtain wall, shows good advertisement effect and artistic effect.
3. Indoor maintenance, quick and safe, save manpower and material resources.no traditional air conditioning cooling system, save more than 35% energy than ordinary LED display.
|Color:||1R1G1B SMD Lamp 1921||1R1G1B SMD Lamp 2525/2727||1R1G1B SMD Lamp 3535 or 1R1G1B SMD Lamp 1206|
|The optimal viewing distance:||5～100m||8～100m||12～100m|
|Viewing angle:||Horizontal : 120°～120°, Vertical : 120°～120°||Horizontal : 120°～120°, Vertical : 120°～120°||Horizontal : 120°～120°, Vertical : 120°～120°|
|Average power :||100～150W/㎡||100～150W/㎡||150～200W/㎡|
|Drive mode:||1/16S or 1/8S||1/8S or 1/4S||1/2S|
|White balance brightness:||≥1200cd/㎡ or ≥4500cd/㎡||≥1200cd/㎡ or ≥4500cd/㎡||4500cd/㎡ or ≥5000cd/㎡|
|Mean time of failure:||≥6500 hours||≥6500 hours||≥6500 hours|
|Span Life:||≥100000 hours||≥100000 hours||≥100000 hours|
|Installation:||Hangling or staching||Hangling or staching||Hangling or staching|
Business Organizations:supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations:Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organization:Telecommunications, post offices, hospital, schools;
Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments:Theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
