Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transparent OLED Display | Size Of Panel: | Customized |
|---|---|---|---|
| Brightness: | 500nits | Feature: | Lightweight |
| Function: | Plug In And Play Function | Panel Type: | TFT-LCD |
| Enclosure: | High Tempered Glass Enclosure | Interface: | VGA DVI-D, USB, AV, Microphone |
| High Light: | transparent oled touch screen,clear oled display |
||
Lightweight Transparent OLED Display With High Tempered Glass Enclosure
Transparent OLED Display Advantage
Transparent OLED Display Advantage

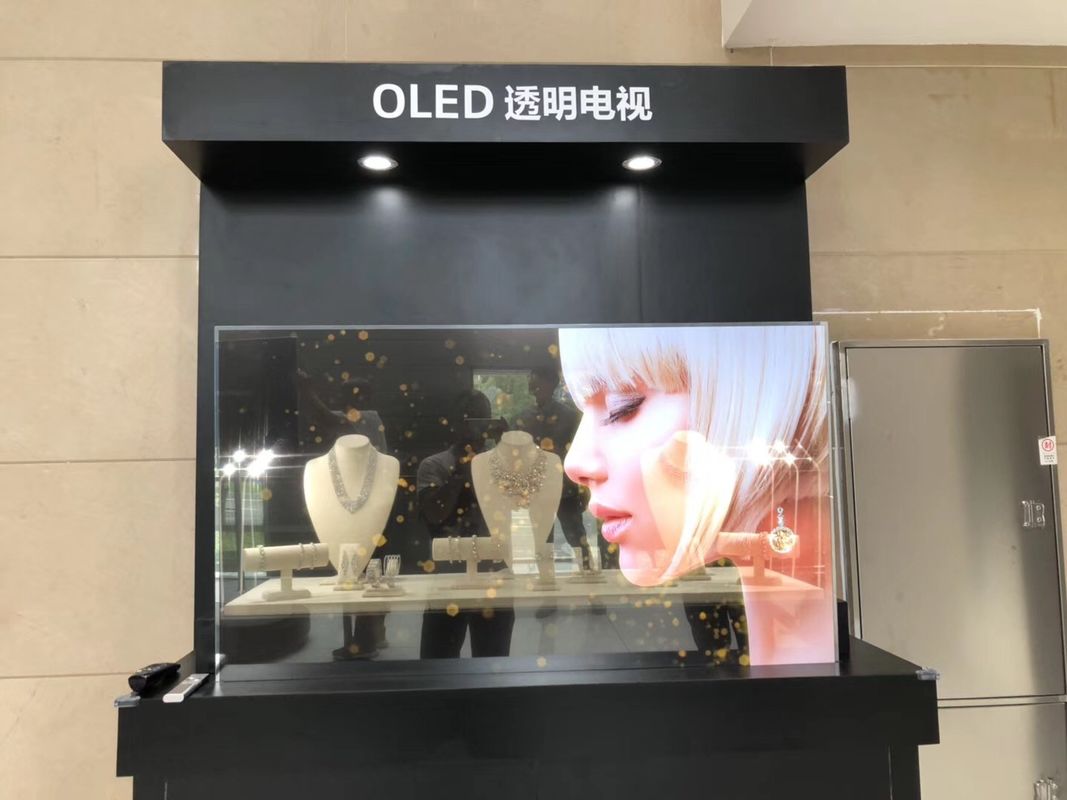

Adopting the latest innovative display, the OLED(Organic Light-Emitting Diode Display) which is recognized as the most advanced energy-saving and environmentally friendly display technology nowadays, make the completed products with advantage of energy-saving and slim feature, its frame can be only 10mm with double-sided display together, this high-end display has a wide range of uses in high-end commercial application like Jewelry Shops/Watch shop/Bar/Hotel/Club, which can greatly enhance the high-end image of luxury commodities like jewel, watch
Transparent OLED Display Parameters
| Configuration Type | Android OS with Cable Network & WIFI network version( Content Management Software is included) | Windows OS WIFI Cable Network | |
| Unique Function |
We offer free-of-charge CMS ( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet (Cable Network/Wirelss/ 3G network/ 4G network/ 5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/ monthly/yearly schedule.... |
It's powerful as computers like we daily use, can be with touch function or non touch.It can achieve all the functions of regular computers | |
| After-Sale Service Term | Warranty Period | One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional | |
| Certificate& Green Management | CE | CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS | |
| Packaging Recyclability | All Packing material are recyclable | ||
| Main Specification | Display Size | 55" | |
| Packing Material | Veneer Wooden Box( Aluminium Box is optional) | ||
| Power Comsuption | 20W~80W | ||
| Power Supply | Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world | ||
| Enclosure Material | High-strength fully High-temperred Glass,Coat Painting Strong Steel | ||
| Operating temperature | -20 ~85ºC | ||
| Mainboard Specification | Mainboard |
Gold-coating 10-layer Industrial High Class Micro ATX Form Factor; All Solid Capacitor design ; High Density Glass Fabric PCB |
|
| Operating System | Android OS 5.1/6.1/7.0 with Google Playstore | Windows 7/8.1/10 | |
| CPU | Android version: Quad-core/Octa-core | Windows version: i3/i5/i7/J1900 | |
| GPU | Android version: GPU: Mali-T764 GPU,supporting 4K resolution |
Windows version: Integrated in CPU HD4600 |
|
| RAM | Android version: LPDDR3 2G/4G/8G/16G for option | Windows version:DDR3/DDR4 2G/4G/8G/16G for option | |
| Storage | Android version: EMMC 8G/16G/32G/64G for option | Windows version:SSD 32G/64G/128G/562G/1TB for option | |
| Cable Network Connectivity | YES | YES | |
| WIFI connectivity | YES | YES | |
| 3G/4G/5G Network Connectivity | Optional | Optional | |
| Bluetooth | Optional | Optional | |
| In/Out Interface | Android Version: 1xUSB 3.0 , copy speed reach to 16M/S;1xHDMI ; 1xRJ45 Cable Network port ; TF PostCard Slot |
Windows version: 2xUSB3.0,2x USB2.0,1x HDMI,1xRJ45 Cable NetworkPort,1xVGA, Audio output,Microphone input |
|
| Speaker Power | 2×8W (8Ω) | 2×8W (8Ω) | |
| Video Format |
MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,... etc. support all of the format of video |
||
| Audio Format | MP3..etc. all of the format of audio | ||
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image | ||
| Operating System Language |
EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language |
||
| Touch Screen Specification (Touch Screen is optional) | Touch Point | SoftTouch sensitive Real 10 points Mult-touch | |
| Touch Type | Latest Version Infrared Ray SoftTouch | ||
| Touch Sensibility: | <3~5mm | ||
| Response Time | <2ms | ||
| Scanning Rate | 50 scans/s | ||
| Available object size for touch | <2mm | ||
| Transparency of Tempered protecting glass | >95% | ||
| Durability of Touch | No limited | ||
| Surface hardness of Touch screen | Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball | ||
| Display Specification | Display Brand | LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle | |
| Max Resolution | FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional | ||
| Display color | 16.7 Millinium | ||
| Brightness (nits) | 600cd/m2 | ||
| Contrast | 1500:1 | ||
| Visual angle | Full View 178/178 degreee | ||
| Response time | 3~5ms | ||
| Life(hrs) | >70,000(hrs) | ||
| Accessories | Qty of Accessories | ||
| 1.User Manual | |||
| 2.Warranty Card | |||
| 3.Power Cord | |||
| 4.Remote Controller | N/A | ||
| 5.Security Door Key | |||
| 6.WIFI antenna | 2 | ||
